1. Document Details

1.1 Scope of the Document

This document aims to help you integrate the Velocity Payment Orchestration Platform (POP) with your application using application programming interfaces (APIs).

Note: Sample codes are provided to facilitate the integration process. However, the live request and response values may vary depending on the configuration.

1.2 Version History

Document Version	Additional Features
2.01	Introduced: Split payment method PayPal workflow Updated: AID data fields Granular error codes
2.02	Introduced exchange services to identify the type of foreign exchange service used for a transaction. Updated split payment method
2.03	Ticket level API changes Added instalments
3.00	Updated the document template.
3.01	Updated Section 7.2 parameters; editing and formatting.
3.02	Added Appendix with tables.
3.03	Added and updated Initialize, Authorize, Capture, and Refund Status Codes in Section 18.
3.04	Added table for update-order-data field description
3.05	Added section 9.1.5 for 3D secure authenticated card with field descriptions.
3.06	Added 3DS example and field description for Authorize-payment (Section 9).
3.07	Updated document template.
3.08	Added new Get Payment Methods API (Section 13).
3.12	Updated Section 16 path details.

2. Introduction

A single integration with the Velocity POP API provides a variety of payment options for merchant websites and mobile applications. The API integration is an easy process and the CPD team provides support for the integration process. API integration is suitable for mobile applications or websites that have Payment Card Industry Data Security Standard (PCI DSS) requirements.

3. Glossary of Terms

The terms used in this document are listed and defined in the table below.

Terms	Description
Merchant	Any business who sells goods or services and accepts payments from customers.
Customers	Those who want to buy goods and services from merchants
HPP	Hosted Payment Pages
PSP	Payment Service Provider
ACQ	Acquirer
APM	Alternate Payment Method
CPD	CellPoint Digital
FX	Foreign Exchange ServiceForeign Exchange Service
MSISDN	Mobile Station International Subscriber Directory Number
MAC	Message Authentication Code
POP	Payment Orchestration Platform
CRM	Client Relationship Management
Min	Minimum
Max	Maximum
DCC	Dynamic Currency Conversion
MCP	Multiple Currency Conversion
PCC	Presentment Currency Conversion
txn	Transaction
PSS	Payment and Settlement System
CRM	Customer Relationship Management

4. Integration Requirements for Merchants

To integrate the Velocity API, you require the following:

A PCI DSS certified website or platform
Velocity URL
Client ID
Merchant account ID
Velocity username and password
Country and currency
Country codes and operator ID
Salt string

5. Velocity POP Payment Workflow

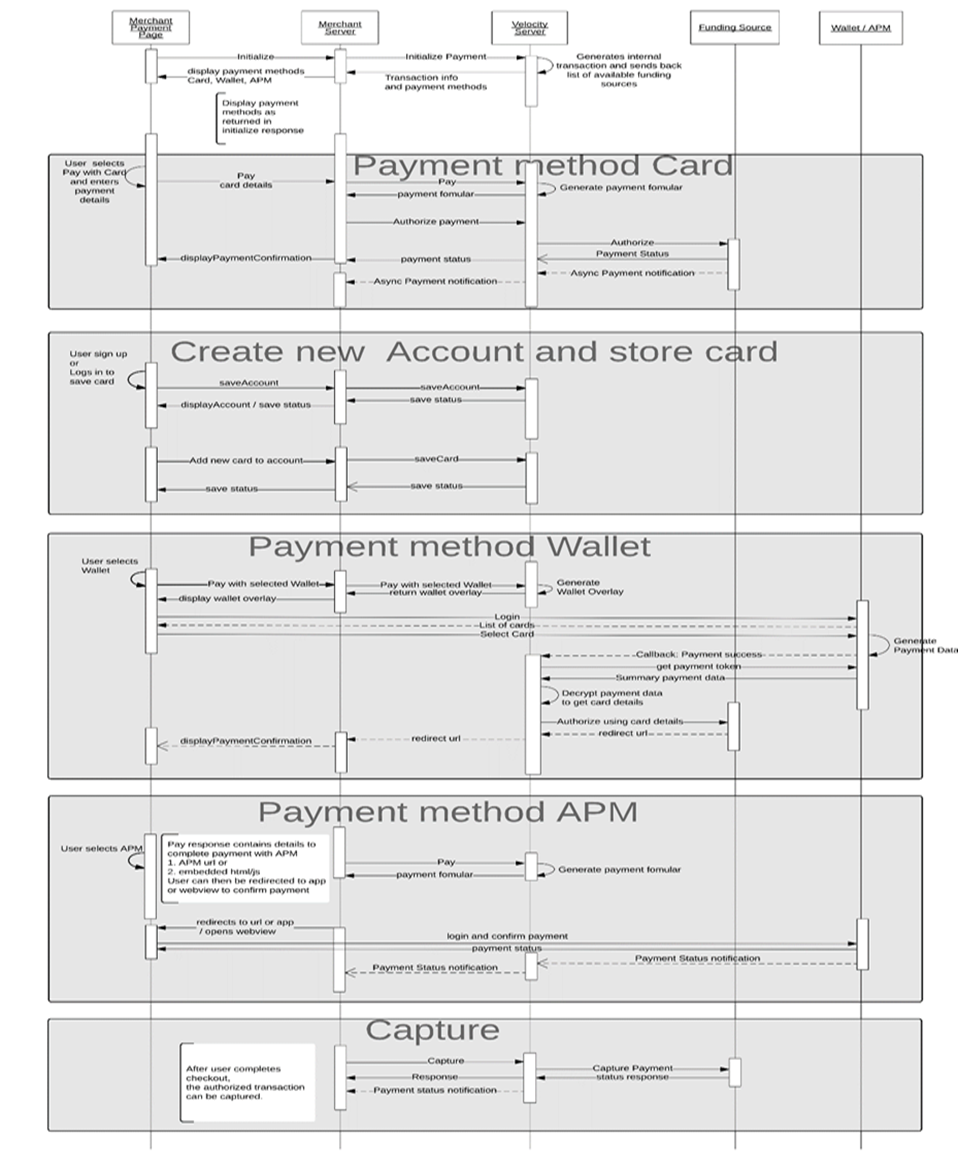

The following sequence diagram provides the POP payment options, which includes the following:

Card payments
Create profile and store cards
Payments using wallets
Alternative form of payments
Payment using online banking
Velocity store cards and profile management

The payment processing workflow of the Velocity POP is as follows:

The merchant application authorizes a payment using the APIs.
The backend of the Velocity POP completes the payment authorization and returns the status.
The APIs provide the status to the frontend of the merchant application, which processes the payment through PSS, based on the payment status.

6. API Specifications: Payments Authentication and Security Management

All API requests must be made through HTTPS. The Velocity API header value format is as follows:

Use HTTP basic authentication to authenticate the request. See Basic Authentication Method for details.
Specify the auth-parameter, where the overall parameter value is provided in the form is x-cpm-sec-token.
x-cpm-sec-token is a unique value that you generate for a unique request. Velocity uses this value to verify if a request is submitted multiple times.

To generate the x-cpm-sec-token, complete the following steps:

Extract the request/response body string.
Remove all space characters from the string including space, tabs, newline, and carriage return.
Append the salt to the body string.
To append the salt, complete the following steps, as applicable to the authentication type:
a. For basic authentication, make the salt as base64 (API username + API password).
b. For bearer authentication, CPD provides the bearer token to be used as salt.
Calculate sha-256 (body + salt) of the string.
Set this hash string as the x-cpm-sec-token header in the request/response.

Note: Consider the following items:

To generate the hash string, you can follow the same process at the receiver end.
To validate the salt, compare the hash string with the x-cpm-sec-token from the header.

The following is an example of the parameters in the header section.

Authentication	Basic
x-cpm-sec-token	6lutO0jd0h1YjlHqjAn6cjKYF5n2ZJjp%2fDNk08IGKS0%3d

7. Initialize Payment

You can invoke the initialize-payment API to initiate a new payment transaction using the Velocity POP. The API returns the required transaction information and merchant configuration for the payment to be successfully processed.

You can access the API from the path listed in the table below.

Path Name	Path Details
End Point	[VELOCITY URL]/mpoint/initialize-payment
Format/Content Type	text/xml
Authentication	HTTP basic access authentication

7.1 Request

The following is an example of an initialize payment request.

<root>
    <initialize-payment account="[integer]" client-id="[integer]">
        <transaction order-no="testOrderId1" type-id="[integer]" session-id="[integer]" product-type="[integer]" booking-ref="[PNR]">
            <amount country-id="[integer]" currency-id="[integer]">100</amount>
            <callback-url> [merchant callback url] </callback-url>
            <accept-url>[merchant accept url</accept-url>
            <hmac>76f8682b42d0de9ad6948d1a8aef1744b939cd0570cd2c9749173b</hmac>
            <additional-data>
                <param name="merchant_payment_ref">12091201291</param>
            </additional-data>
        </transaction>
        <auth-token>profilesuccessvalidation</auth-token>
        <client-info language="en" sdk-version="2.1.0" version="2.1.0" platform="[platform type]" profileid="[integer]">
            <mobile operator-id="[integer]" country-id="[integer]"> [mobile number] </mobile>
            <email> [email id] </email>
            <device-id>ABCdefr6732</device-id>
        </client-info>
    </initialize-payment>
</root>

Note: For split abandoned payments, the session-id is sent back in the initialize request with the full amount. A split abandoned happens when a customer starts a fresh transaction and leaves a current split payment.

Note: Merchants from specific domains, such as airlines or rail, want to display booking information to customers after they make payment. For example, ticket details along with the address of a customer.

7.2 Request with AID Data

The following is an example of airline data.

<?xml version="[integer]" encoding="UTF-8"?>
<root>
    <initialize-payment account="[integer]" client-id="[integer]">
        <transaction order-no="[string]" type-id="[integer]">
            <amount currency-id="[integer]" country-id="[integer]">40180</amount>
            <orders>
                <shipping-address>
                    <name>name</name>
                    <street>street</street>
                    <street2>another street</street2>
                    <city>city</city>
                    <state>NY</state>
                    <zip>411028</zip>
                    <country>India</country>
                </shipping-address>
                <line-item>
                    <product sku="PR-SAEF-11">
                        <name>single journey</name>
                        <description>single journey</description><image-url>[image URL]>
                        <airline-data order-type="TICKET" order-no="[string]">
                            <amount decimals="[integer]" currency-id="[integer]" currency="PHP" symbol="" format="" country-id="640">638500</amount>
                            <fees>
                                <fee format="" symbol="" currency="PHP" country-id="640" type-id="2">112300</fee>
                            </fees>
                            <trips>
<trip seq="1" tag="1">
                                    <service-level>Economy</service-level>
                                    <origin time-zone="+08:00" country-id="640" external-id="MNL" type-id="8">Manila</origin>
                                    <destination time-zone="+08:00" country-id="640" external-id="BCD" type-id="8">Bacolod</destination>
                                    <departure-time>2020-02-21 08:15:00</departure-time>
                                    <arrival-time>2020-02-21 09:35:00</arrival-time>
                                    <booking-class>H</booking-class>
                                    <transportation code="">
                                        <vehicle type="[integer]" id="[integer]">321</vehicle>
                                        <carriers>
                                            <carrier type-id="1" code="PR">
                                                <number>2131</number>
                                            </carrier>
                                            <carrier type-id="[integer]" code="PR">
                                                <number>2131</number>
                                            </carrier>
                                        </carriers>
                                    </transportation>
                                </trip>
                            </trips>
                            <profiles>
                                <profile id="[integer]">
                                    <title>MR</title>
                                    <first-name>test</first-name>
                                    <last-name>one</last-name>
                                    <type>ADULT</type>
                                    <amount decimals="2" currency-id="608" currency="[string]" symbol="" format="" country-id="640">638500</amount>
                                    <contact-info>
                                        <email>[email id]</email>
                                        <mobile country-id="[integer]">[phone number]</mobile>
                                    </contact-info>
                                </profile>
                            </profiles>
                            <billing-summary>
                                <fare-detail>
                                    <fare>
                                        <profile-seq>1</profile-seq>
                                        <description>adult</description>
                                        <currency>PHP</currency>
                                        <amount>60</amount>
                                        <product-code>ABF</product-code>
                                        <product-category>FARE</product-category>
                                        <product-item>Base fare for adult</product-item>
                                    </fare>
                                </fare-detail>
                                <add-ons>
                                    <add-on>
                                        <profile-seq>1</profile-seq>
                                        <trip-tag>2</trip-tag>
                                        <trip-seq>2</trip-seq>
                                        <description>adult</description>
                                        <currency>PHP</currency>
                                        <amount>60</amount>
                                        <product-code>ABF</product-code>
                                        <product-category>FARE</product-category>
                                        <product-item>Base fare for adult</product-item>
                                    </add-on>
                                </add-ons>
                            </billing-summary>
                        </airline-data>
                    </product>
                    <amount>638500</amount>
                    <points>200</points>
                    <reward>1</reward>
                    <quantity>1</quantity>
                    <additional-data>
                        <param name="deviceFingerPrint">12091201291</param>
                    </additional-data>
                </line-item>
            </orders>
            <hmac>76f8682b42d0de9ad6948d1a8aef1744b939cd0570cd2c9749173b</hmac>
            <additional-data>
                <param name="merchant_payment_ref">12091201291</param>
            </additional-data>
        </transaction>
        <client-info language="en" platform="Android/9(28)" version="2.00" app-id="2">
            <mobile country-id="[integer]">99065528</mobile>
            <email>[email id]</email>
            <device-id>c2f-60-45e-8f7-83a4</device-id>
        </client-info>
    </initialize-payment>

The parameters are listed and defined in the table below.

Parameter

Type

Required

Description

Initializing Payments Parameters

account

Integer

The unique ID associated with a payment transaction. It is optional. If you omit this parameter, the payment transaction is associated with the default sub-account.

client-id

Integer

Yes

The unique ID configured for a merchant on the Velocity POP.

Transaction Parameters

order-no

String

Yes

The order ID that a merchant generates. It is an alphanumeric string.
Note: Some Payment Providers have strict guidelines for the order-no. The recommended pattern is "[a-zA-Z0-9._-].

currency-id

Integer

The currency of the transaction amount. This should be the ISO 4217 numeric code.

type-id

Integer

The type of transaction used for making payment. Velocity supports the following transaction types:

Value	Transaction types	Examples
1	Online shopping	S&B Purchase
2	Offline shopping	S&B Purchase
3	Self Service Online	MYB Ancillary Purchase, MYB Change Itinerary Payment, OLCI Ancillary Purchase
4	Self Service Offline	MYB Pay Later
5	Self Service Online	MYB/Self Service Online with additional rules on FOP-- Managed Booking txn where additional rules on FOP can be configured
6	Self Service Online	CPL - Payment Link Transaction. Transaction originated from payment link

session-id

Integer

The ID of a session used for multiple payment transactions during one payment flow. For example, split payment or retry of a failed payment transaction.

amount

Integer

Yes

The total amount that a customer is charged for a payment transaction in a country’s smallest currency. For example, the smallest currency of USD is penny. If the transaction amount is $120.30, then the amount field contains value 12030.
Note: The amount is always a non-decimal value in the request. The object amount contains the country-id and currency-id parameters.

fees/fee

Integer

This the addition fees if applicable for the transaction like for specific scenarios like administrative fee for offline payment or pay later. For example, the smallest currency of USD is penny. If the transaction amount is $120.30, then the amount field contains value 12030.
Note: The fee is always a non-decimal value in the request. The object amount contains the country-id and currency-id parameters.

country-id

Integer

Yes

The CPD-specific country code, which is available in appendix.

callback-url

String

The absolute URL to the back office of a merchant where Velocity POP sends the payment status.
Note: If you do not provide this parameter, Velocity uses the default URL.

accept-url

String

The URL where Velocity directs a customer after successfully completing a payment transaction.
Note: If you do not provide this parameter, Velocity uses the default URL. The URL is used for redirecting to either the HPP or merchant’s page after a payment completion.

cancel-url

String

The absolute URL where Velocity directs customers if they cancel a payment transaction midway.
Note: If you do not provide this parameter, Velocity uses the default URL. The URL is used for redirecting to either the HPP or merchant’s page after a payment cancellation.

decline-url

String

The absolute URL where Velocity directs customers if the payment transaction fails. The URL is used for redirecting to either the HPP or merchant’s page after a payment failure.

auth-url

String

The URL which used for single sign-on authentication if provided by an external system.

service-type-id

Integer

A value to indicate the type of exchange services used for a transaction. The ID indicates if the FX services such as DCC, MCP, and PCC are opted. The ID is a two-digit number XY in which:

X - Represents the type of FX used in a transaction.
Y - Represents the service usedꟷ it can be:
Opt-in, which has value as “1”
Opt-out, which has value as “2”

The following table shows the possible values of exchange service ID:

ID (XY)	Service (X)	Opted (Y)
11	DCC	Opted
12	DCC	Not Opted
21	MCP	Opted
22	MCP	Not Opted
31	External MCP	Opted
32	External MCP	Not Opted
41	PCC	Opted
42	PCC	Not Opted

auth-token

String

A unique token sent to the specified auth-url to authenticate customers when they pay with a stored card and use single sign-on.

hmac

String

Yes

The Message Authentication Code. It is calculated by creating a sha-512 hash comprising the following input fields in the listed order:

clientid
account
orderid
callback-url
amount
auth-url
customer-ref
auth-token
email
mobile
[salt]

Note: CPD provides the salt value to merchants.
MAC calculation secures the information sent by the merchant to Velocity by applying the SHA-512 encryption algorithm on key parts of the information sent to protect against tampering. The “salt” is the merchant's shared secret string used to ensure that MAC is unique.

orders

Object

The order details with following details: event, location, date or time, ticket type, cost, booking fee, quantity, and total price.

Note: This parameter is used for airline data only, defined in separate guide for Airline Data.

additional-data

Node

An optional node that contains additional information about the transaction. It includes a list of parameters with values. Recommended length for parameter value is 20 characters.

additional-data (merchant payment reference)

Node

An optional node to pass the merchant's payment reference, the merchant needs to pass this value as additional data in the alphanumeric format maximum 20 characters.

Merchant information parameters

client-info

Object

Yes

An object of client-info, which contains the following merchant details: language, version, platform, and profile ID.

platform

String

yes

The platform from which the request is sent. For example, web, iOS, Android, B2B, and B2C.

sdk-version

Integer

yes

The version of SDK used to send the request.
Note: Use 2.1.0 SDK version in the request.

version

String

yes

The version of the API or application that send the request.

language

String

yes

The language that Velocity uses as default when translating the payment pages. Velocity uses a default language set by a merchant if this parameter is omitted.
Note: Velocity language codes are based upon the ISO- 639-1 standard.
Refer http://en.wikipedia.org/wiki/List_of_ISO_639-1_codes for details.

mobile

Integer

The MSISDN of a customer without International Dialling Code.
Note: A mobile number can be mandatory or optional, based on the requirement of a merchant or a PSP.

country-id

Integer

The CPD-specific country code, which is provided on request.
Note: Mandatory only if mobile number is provided.

String

The email address of a customer. If your customer provides this parameter, the Email input field on the Send E-Mail Receipt page is automatically populated with this value.
Note: Email can be mandatory or optional, based on the requirement of a merchant or a PSP.

device-id

String

The device ID of a customer’s device.
Note: device ID is optional for a web channel.

Note: For AID parameters description, refer to the CPD Velocity AID Data Integration for HPP V1.02 guide.

7.3 Response

The response from the Velocity server has information about the transaction such as transaction ID and amount, along with the configured payment methods or card types. The merchants must call this API when a customer makes a purchase.

The initialize payment response can be divided into the following parts

Merchant configuration
Transaction information
Card information

7.3.1 Card Payment

The following is an example of the response that the Velocity server sends to a merchant’s customer.

<?xml version="1.0" encoding="UTF-8"?>
<root>
  <client-config account="[integer]" auto-capture="false" id="[integer]" mode="[integer]" store-card="[integer]">
    <name>Test</name>
    <callback-url>[callback url]</callback-url>
    <accept-url />
  </client-config>
  <transaction auto-capture="true" eua-id="[integer]" id="[integer]" language="en" mode="1" order-no="" type-id="[integer]">
    <amount country-id="[integer]" currency="DKK" format="{PRICE} {CURRENCY}" symbol="">10025</amount>
    <mobile country-id="[integer]" operator-id="[integer]">30206172</mobile>
    <callback-url>[CALLBACK URL]</callback-url>
    <accept-url />
  </transaction>
  <cards>
  .....
    <card cvc-length=“3” cvcmandatory=“false” dcc=“false” enabled=“true” id=“8” instalment=“0" max-length=“19” min-length=“13" payment-type=“1” preferred=“false” processor-type=“1” psp-id=“21" state-id=“1” type-id=“8">
    <name>Visa</name>
    <prefixes>
                <prefix>
                    <min>4000</min>
                    <max>4999</max>
                </prefix>
                <prefix>
                    <min>413222</min>
                    <max>413222</max>
                </prefix>
    </prefixes>Visa
    </card>
  </cards>
  <stored-cards>
    <card id="[integer]" preferred="true" psp-id="2" type-id="2" dcc="true”>
      <name>myVisa</name>
      <card-number-mask>4711 10** **** 0000</card-number-mask>
      <expiry>06/24</expiry>
    </card>
  </stored-cards>
</root>

7.3.2 Wallet

The following is an example of the response to a payment using a wallet.

<wallets>
        <card cvc-length="-1" enabled="true" id="15" max-length="-1" min-length="-1" payment-type="3" preferred="false" processor-type="3" psp-id="18" state-id="1" type-id="[integer]">
            <name>[wallet name]</name>
            <prefixes>
                <prefix>
                    <min>0</min>
                    <max>0</max>
                </prefix>
            </prefixes>
            <url method="overlay" />
            <head><script type='text/javascript'> var debug = false; var countryCode = "US"; var currencyCode = "USD"; var merchantIdentifier = 'merchant.com.cellpointmobile.(wallet name)'; var displayName ="UATP"; var totalAmount = "1"; var supportedNetword = ['AMEX','MASTERCARD','VISA']; </script> <script type="text/javascript" src="https://s3.ap-qwert-1.amazonaws.com/cpmassets/psp/(wallet name).js"></script> <style> #(wallet name){width:150px;height:50px;display:none;border-radius:5px;background-image:-webkit-named-image(apple-pay-logo-white);background-position:50% 50%;background-color:#000;background-size:60%;background-repeat:no-repeat} </style></head>
            <body><button type="button" id="(wallet name)"></button></body>
        </card>
</wallets>

The following is an example of the response to a payment using Apple Pay.

?xml version="1.0" encoding="UTF-8"?>
<root>
    <url method="overlay" />
    <head>&lt;script type='text/javascript'&gt; var debug = false; var countryCode = "US"; var currencyCode = "USD"; var merchantIdentifier = 'merchant.com.CPD.iphone.qa'; var displayName ="UATP"; var totalAmount = "1"; var supportedNetword = ['AMEX','MASTERCARD','VISA']; &lt;/script&gt; &lt;script type="text/javascript" src="https://s3.ap-qwert-1.amazonaws.com/cpmassets/psp/(wallet name).js"&gt;&lt;/script&gt; &lt;style&gt; #(wallet name){width:150px;height:50px;display:none;border-radius:5px;background-image:-webkit-named-image(apple-pay-logo-white);background-position:50% 50%;background-color:#000;background-size:60%;background-repeat:no-repeat} &lt;/style&gt;</head>
    <body>&lt;button type="button" id="(wallet name)"&gt;&lt;/button&gt;</body>
</root>

7.3.3 Offline

<offline>
        <card cvc-length="0" cvcmandatory="false" dcc="false" enabled="true" id="96" installment="0" max-length="0" min-length="0" payment-type="8" preferred="false" presentment-currency="false" processor-type="8" psp-id="-1" state-id="1" type-id="96">
         <name>Payment Center Offline</name>
         <prefixes />Payment Center Offline
        </card>
</offline>

7.3.4 Aggregator

<aggregators>
        <card cvc-length="0" cvcmandatory="false" dcc="false" enabled="true" id="97" installment="0" max-length="0" min-length="0" payment-type="7" preferred="false" presentment-currency="false" processor-type="7" psp-id="-1" state-id="1" type-id="97">
            <name>PSE</name>
            <prefixes />
            <active-payment-menthods>
                <payment-method>
                    <logoName>8f56c0c2-c2ac-4b25-9d64-849101aa512b</logoName>
                    <logoURL>0</logoURL>
                    <displayName>A continuación seleccione su banco</displayName>
                    <issuingBank>0</issuingBank>
                    <displayOrder>1</displayOrder>
                </payment-method>
                <payment-method>
                    <logoName>2c9c848b-a02b-4aa5-bc49-6695e28f7517</logoName>
                    <logoURL>1552</logoURL>
                    <displayName>BAN.CO</displayName>
                    <issuingBank>1552</issuingBank>
                    <displayOrder>2</displayOrder>
                </payment-method>
            </active-payment-menthods>PSE
        </card>
</aggregators>

7.3.5 APM

<apms>
        <card id="95" type-id="95" psp-id="-1" min-length="-1" max-length="-1" cvc-length="-1" state-id="1" payment-type="4" preferred="false" enabled="true" processor-type="4" installment="0" cvcmandatory="false" dcc="false" presentment-currency="false">
            <name>PayMaya</name>
            <prefixes>
                <prefix id="271">
                    <min>-1</min>
                    <max>-1</max>
                </prefix>
            </prefixes>PayMaya
        </card>
    </apms>

7.3.6 Vouchers

<vouchers>
        <card id="26" type-id="26" psp-id="-1" min-length="-1" max-length="-1" cvc-length="-1" state-id="1" payment-type="2" preferred="false" enabled="true" processor-type="2" installment="0" cvcmandatory="false" dcc="false" presentment-currency="false">
            <name>TravelFund</name>
            <prefixes>
                <prefix id="273">
                    <min>-1</min>
                    <max>-1</max>
                </prefix>
            </prefixes>TravelFund
        </card>
        <card id="24" type-id="24" psp-id="-1" min-length="-1" max-length="-1" cvc-length="-1" state-id="1" payment-type="2" preferred="false" enabled="true" processor-type="2" installment="0" cvcmandatory="false" dcc="false" presentment-currency="false">
            <name>Invoice</name>
            <prefixes>
                <prefix id="178">
                    <min>-1</min>
                    <max>-1</max>
                </prefix>
                <prefix id="180">
                    <min>-1</min>
                    <max>-1</max>
                </prefix>
            </prefixes>Invoice
        </card>
    </vouchers>

8. Pay

The Pay request is an internal request from a merchant’s portal to Velocity when a customer initializes the payment. The purpose of this request is to do the following:

Retrieve information about how to proceed with the payment or PSP confirmation which gives an idea about the parameters required to authorize a transaction.
Ensure that a complete audit trail is maintained for each payment transaction.
This request can return different responses depending on the type of payment such as 3ds, non-3ds, wallet, alternative payment method (APM), or store card.

Note: Merchants do not require to call the Pay API if the following applies:

They opt to use the store vault of Velocity and their customers make payment using the stored cards.
Customers make payment using cards.

After consuming the Pay API, merchants must invoke the authorize API. Refer to Authorize Payment for details.

The API is available at the following path:

Path Name	Path Details
End Point	[Velocity URL]/mpoint/pay
Format/Content Type	text/xml
Authentication	HTTP basic access authentication

8.1 Request

The following request is sent for a pay request:

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<root>
<pay account="101011" client-id="10101">
<transaction id="5057200" store-card="false">
<card type-id="97">
<amount country-id="405" currency-id="170">25526000</amount>
<token>1022</token>
</card>
<hmac>f5ef1cfd960922babd492f06d6bf439a61de05cd395fc55225d5c1fb91801010a4dd6fa56872b6a8fa53cced7594582adb1d938f93f1859a1e794a85045f28a4</hmac>
<billing-address country-id="640">
<full-name>Test Automation</full-name>
<street>MyStreet</street>
<city>Pune</city>
</billing-address>
</transaction>
<auth-token>success</auth-token>
<client-info language="en" platform="HTML5" sdk-version="2.0.0" version="2.0.0">
<mobile country-id="640" operator-id="64000">9898989898</mobile>
<email>[email protected]</email>
<customer-ref>[email protected]</customer-ref>
<ip>223.235.105.4</ip>
</client-info>
</pay>
</root>

Note: The token information depends on the type of transaction.

8.2 Response

The pay response includes all the required parameters that Velocity sends to a merchant’s portal to authorize a payment.

8.2.1 Card Payment

The following is an example of a payment response for a card payment:

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <psp-info id="[integer]" merchant-account="[integer]" type="1">
        <url content-type="application/x-www-form-urlencoded" method="post">[post URL]</url>
        <card-number>card_number</card-number>
        <expiry-month>expiration_month</expiry-month>
        <expiry-year>expiration_year</expiry-year>
        <cvc>securitycode</cvc>
        <name>card_holderName</name>
        <clientinfo>client_info</clientinfo>
        <accept-url>[ url]</accept-url>
        <return-url>return url</return-url>
        <hidden-fields>
            <merchant_account_id>9105bb4f-ae68-4768-9c3b-3eda968f57ea</merchant_account_id>
            <request_id>1838633_15172966764151</request_id>
            <transaction_type>10091</transaction_type>
            <requested_amount>100</requested_amount>
            <requested_amount_currency>USD</requested_amount_currency>
            <client-id>[integer]</client-id>
            <account-id>[integer]</account-id>
            <requested_amount_country>200</requested_amount_country>
            <store-card>false</store-card>
            <requested_currency_id>840</requested_currency_id>
            <transactionId>1838633</transactionId>
            <payment_ip_address>139.162.215.209</payment_ip_address>
            <email>email id</email>
            <phone>integer</phone>
            <card-type-id>7</card-type-id>
            <field_name_1>exp_month</field_name_1>
            <field_name_2>exp_year</field_name_2>
            <field_name_3>card_type_id</field_name_3>
            <field_value_3>7</field_value_3>
            <field_name_4>stored_card</field_name_4>
            <field_value_4>false</field_value_4>
            <card_type>mastercard</card_type>
            <notification_url_1>url</notification_url_1>
        </hidden-fields>
        <message language="en" />
    </psp-info>
    <status code="1009">Payment Initialize with PSP</status>
</root>

8.2.2 APM

The following is an example of payment response for APM:

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <psp-info id="24" merchant-account="[integer]" type="4">
        <url content-type="application/x-www-form-urlencoded" method="post">https://www.sandbox.com/cgi-bin/webscr?cmd=_express-checkout&amp;token=EC-9NU6Xasdjl2B&amp;useraction=commit</url>
        <hidden-fields>
            <merchant>ababababaYYRCpSSRl31ADxVAF5rd9Z-52J.7gdxYOzAv3RD</merchant>
            <order.id>CPD1516873044132</order.id>
            <order.amount>100</order.amount>
            <order.currency>GBP</order.currency>
            <session.id>EC-9NU66762XE901272B</session.id>
            <transaction.id>1838548</transaction.id>
            <sourceOfFunds.type>CARD</sourceOfFunds.type>
            <mpoint-id>1838548</mpoint-id>
            <store-card>false</store-card>
            <requested_currency_id>826</requested_currency_id>
        </hidden-fields>
        <name>card_holderName</name>
        <message language="en"/>
    </psp-info>
    <status code="1009">Payment Initialize with PSP</status>
</root>

8.2.3 Wallet

The following is an example of a payment response for a wallet:

<?xml version="1.0" encoding="UTF-8"?>
<root>
<psp-info id="14" merchant-account="merchant.com.cellpointdigital.applepay"  type="3">
<url method="overlay"/>
<head>&lt;script type='text/javascript'&gt; var debug = false; var countryCode = "US"; var currencyCode = "USD"; var merchantIdentifier = 'merchant.com.cellpointdigital.applepay'; var displayName ="Ethiopian Airlines"; var totalAmount = "578.34"; var supportedNetword = ['VISA','MASTERCARD','AMEX']; &lt;/script&gt; &lt;script type="text/javascript" src="https://cpmassets.s3-ap-southeast-1.amazonaws.com/et/1.3.1/applepay.js"&gt;&lt;/script&gt; &lt;style&gt; #applePay{width:150px;height:50px;display:none;border-radius:5px;background-image:-webkit-named-image(apple-pay-logo-white);background-position:50% 50%;background-color:#000;background-size:60%;background-repeat:no-repeat} &lt;/style&gt;</head>
<body>&lt;button type="button" id="applePay"&gt;&lt;/button&gt;</body>
<name>card_holderName</name>
<auth-token>Auth-Token</auth-token>
<message language="en"></message>
</psp-info>
<status code="1009">Payment Initialize with PSP</status>
</root>

8.2.4 Online Banking

The following is an example of a payment response for online banking:

<?xml version="1.0" encoding="UTF-8" standalone="no"?>
<root>
<psp-info id="53" merchant-account="" type="4">
<url content-type="application/x-www-form-urlencoded" method="GET" type-id="11">https://sandbox.api/payments-api/pse-caller</url>
<hidden-fields>
<enc>adpc3Ryby5kZXNhcnJvbGxvLnBzZS5jb20uY28vUFNFVXNlclJlZ2lzdGVyL1N0YXJ0VHJhbnNhY3Rpb24uYXNweZUU5dUxxYW4lMmI0elBDcU94S3I1b09ySXZTSmYwRElPcno0RjV3S0pQdU0jIyMjQVYgM0JWOVBMIyMxMjM0NTY3OA==</enc>
</hidden-fields>
<accept-url>https://sit.cpm.dev/mpoint/aggregator/(PSP name)/redirect</accept-url>
<name>card_holderName</name>
<auth-token>Auth-Token</auth-token>
<message language="en"/>
</psp-info>
<status code="1041">Payment Pending</status>
</root>

The parameters are listed and defined in the table below.

Parameter

Type

Required

Description

Client Information Parameterss

language

String

Yes

The language that Velocity uses as default when translating the payment pages.
Note: Velocity language codes are based upon the ISO- 639-1 standard.
Referhttps://en.wikipedia.org/wiki/List_of_ISO_639-1_codes for details.

version

String

Yes

The version of an API or application that sends the request.

platform

String

Yes

The platform from which the request is sent; for example, The platform from which the request is sent. It can be:

Web
iOS
Android
B2B
B2C
Application
SPA

mobile operator-id

Integer

Yes

The ID of a customer’s mobile network operator. CPD recommends including this parameter in the request to ensure Velocity correctly interacts with the operator.

country-id

Integer

Yes

The CPD-specific country code, which is made available to merchants on request.

client-id

Integer

Yes

A unique ID configured for a merchant on the Velocity POP.

device-id

String

The device ID of a customer’s device.
Note: Device ID is optional for a web channel.

customer-reference

Integer

Yes

A unique reference number used for customer identification.

Account Parameters

String

The identification number of a merchant account.

markup

String

Yes

The type of store front.

Transaction Parameters

Integer

Yes

The identification number of a transaction.

store-card

Boolean

yes

Shows if you have stored card.

Card Parameters

amount

Integer

Yes

type-id

Integer

Yes

The type of card scheme. For example, Mastercard or Visa.

token

String

This is a card token.

psp-info Parameters

integer

yes

Internal ID of the PSP in Velocity

merchant-account

integer

Used for merchant-account for third-party wallet on device.

content-type

String

The content type used for the request to the PSP.

method

Integer

Yes

The method used for submitting the authorization request.

Method	Description
App	Used for payment with the third-party wallet on the device.
GET	Using HTTP GET.
POST	Using HTTP POST.

token

String

This is a card token.

order-id

Alpha numeric string

Yes

The order identification number of a transaction.

transaction-id

Integer

Yes

A unique transaction identification number of a transaction.

store-card

Boolean

yes

Shows if you have stored card.

requested_currency_id

Integer

The identification number of the currency called during a transaction.

language

String

Yes

The language that Velocity uses as default when translating the payment pages. Velocity uses a default language set by a merchant if this parameter is omitted.
Note: Velocity language codes are based upon the ISO- 639-1 standard. Refer http://en.wikipedia.org/wiki/List_of_ISO_639-1_codes for details.

Status Parameter

Code

Integer

yes

The status code of a transaction. It depends on the payment provider. It can be 1009, 1041, or an error code.

9. Authorize Payment

The authorize payment request is used to authorize a payment. The API is available at the following path:

Path Name	Path Details
End Point	[Velocity URL]/mpoint/ authorize-payment
Format/Content Type	text/xml
Authentication	HTTP basic access authentication

9.1 Request

There are alternative request formats depending on the payment methods selected during a payment.

9.1.1 New Card

The following is an example of making a payment using a new card:

<?xml version="1.0" encoding="UTF-8"?>
<root>
  <authorize-payment account="100101" client-id="10002">
    <transaction type-id="30" id="1832214" store-card="false" >
      <card type-id="7">
        <amount country-id="200">100</amount>
        <card-holder-name>CardHolder Name</card-holder-name>
        <card-number>4012000300006002</card-number>
        <expiry>01/23</expiry>
        <cvc>009</cvc>
      </card>
    </transaction>
    <client-info language="en" version="1.28" platform="iOS/9.0">
      <mobile operator-id="10000" country-id="[integer]">[phone number]</mobile>
      <email>[email id]</email>
      <device-id>3432444444444444444FFFFFf03</device-id>
    </client-info>
  </authorize-payment>
</root>

9.1.2 Credit or Debit Card

The following is an example of a payment using a credit or debit card:

<?xml version="1.0" encoding="UTF-8"?>
  <authorize-payment account="100691" client-id="10069">
    <transaction type-id="10091" id="1935288">
      <card type-id="8">
        <amount country-id="603">85556</amount>
            <card-holder-name>CellPointMobie</card-holder-name>
            <card-number>4788250000028291</card-number>
            <expiry>11/18</expiry>
      </card>
    </transaction>
    <client-info language="da" version="1.28" platform="iOS/9.0">
      <mobile operator-id="10000" country-id="200">[phone number]</mobile>
      <email>[email id]</email>
      <device-id>B4D54A3A4F5E4E1595F7A3BF16249F6D14555303</device-id>
    </client-info>
  </authorize-payment>

9.1.3 Third-party Wallet

The following is an example of a payment using a third-party wallet:

<?xml version="1.0" encoding="UTF-8"?>
<root>
  <authorize-payment account="[integer]" client-id="[integer]">
    <transaction type-id="[integer]" id="[integer]">
      <card network="mastercard" type-id="[integer]">
        <address country-id="[integer]">
          <full-name>test name</full-name>
          <street>Gl. test street 8</street>
          <postal-code>7766</postal-code>
          <city>testCity</city>
          <state>CA</state>
        </address>
        <amount country-id="[integer]">10025</amount>
        <token>dasdlkjasl31232123231dkdlsakldfmggmmggm........</token>
      </card>
    </transaction>
    <client-info language="en" version="1.20" platform="iOS/8.1.3">
      <mobile operator-id="[integer]" country-id="[integer]">[phone number]</mobile>
      <device-id>32E2C0FAF455915D14298774</device-id>
    </client-info>
  </authorize-payment>

9.1.4 Voucher

The following is an example of making a payment using a voucher:

<?xml version="1.0" encoding="UTF-8"?>
<root>
  <authorize-payment account="100101" client-id="10002">
    <transaction type-id="30" id="1832214" store-card="false" >
<voucher id=”[string]” order-no=”[string]”>
        <amount currency-id=”840” country-id="200">100</amount>
      </voucher>
    </transaction>
    <client-info language="en" version="1.28" platform="iOS/9.0">
      <mobile operator-id="10000" country-id="[integer]">[phone number]</mobile>
      <email>[email id]</email>
      <device-id>3432444444444444444FFFFFf03</device-id>
    </client-info>
  </authorize-payment>
</root>

9.1.5 3D secure authenticated card

The following is an example of a payment using a credit or debit card with 3D secure information:

<?xml version="1.0" encoding="UTF-8"?>
<authorize-payment account="100691" client-id="10069">
<transaction type-id="10091" id="1935288">
<card type-id="8">
<amount country-id="603">85556</amount>
<card-holder-name>CellPointMobie</card-holder-name>
<card-number>4788250000028291</card-number>
<expiry>11/18</expiry>
<pre_authenticated>true/false</pre_authenticated>
<info-3d-secure>
<provider>{{provider_which_is_used_for_authentication}}</provider>
<version>{{3DS Version}}</version>
<cryptogram eci="{{eci}}" xid="{{xid}}" algorithm-id="{{algorithm}}">
            {{cryptogram}}
            </cryptogram>
<additional-data>
<param name="status">{{status}}</param>
<param name="msg">{{msg}}</param>
<param name="veresEnrolledStatus">{{veres enrolled status}}</param>
<param name="paresTxStatus">{{paresTxStatus}}</param>
<param name="PAResVerified">{{PAResVerified}}</param>
<param name="PAResSyntaxOK">{{PAResSyntaxOK}}</param>
<param name="cardType">{{cardType}}</param>
<param name="accessControlServerTransactionId">{{accessControlServerTransactionId}}</param>
<param name="threeDSServerTransID">{{threeDSServerTransID}}</param>
<param name="directoryServerTransactionId">{{directoryServerTransactionId}}</param>
</additional-data>
</info-3d-secure>
</card>
</transaction>
<client-info language="da" version="1.28" platform="iOS/9.0">
<mobile operator-id="10000" country-id="200">[phone number]</mobile>
<email>[email id]</email>
<device-id>B4D54A3A4F5E4E1595F7A3BF16249F6D14555303</device-id>
</client-info>
</authorize-payment>

Parameter	Type	Required	Description
card
pre_authenticated	String	No	True: In Case of 3DS already done at the merchant end.
Info-3d-secure Parameter
version	String	Yes	The version of 3DS used to process the transaction. For 3DS1 - 1.0.2 For 3DS2 - 2.1.0 or 2.2.0
provider	String	No	The provider’s name which is used for authentication.
cryptogram	String	Conditional	Required, if eci value is 01, 02, 05 or 06. A cryptographic value that provides evidence of the outcome of a 3DS verification. Visa - Cardholder Authentication Verification Value (CAVV) Mastercard - Universal Cardholder Authentication Field (UCAF)
eci	String	Yes	Electronic Commerce Indicator (ECI). It indicates the outcome of the 3DS verification. 02 or 05 - Fully Authenticated Transaction 01 or 06 - Attempted Authentication Transaction 00 or 07 - Non 3-D Secure Transaction Mastercard - 02, 01, 00 Visa - 05, 06, 07 Amex - 05, 06, 07 JCB - 05, 06, 07 Diners - 05, 06, 07
xid	String	Conditional	This is mandatory for 3DS Version 1.
algorithm-id	String	No	A cryptographic algorithm used for cryptograms.
additional-data	Node	No In the case of 3DS version 2 directoryServerTransactionId param, it is mandatory.	An optional node that contains additional information about the 3DS authentication transaction provided by an external authentication service. It includes a list of parameters with values. For example: accessControlServerTransactionId : ACS server transaction ID directoryServerTransactionId: Directory server trasnaction id (Mandatory for 3DS version 2.0)

9.2 Response

The Velocity server sends the response confirming if the transaction authorization was a success or a failure. The following example shows that a payment request was authorized successfully:

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <status code="2000">Payment authorized</status>
</root>

The following is an example of response received for a failed authorization:

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <status code="2010" sub-code="2010205"> Unable to authorize</status>
</root>

The parameters are listed and defined in the table below.

Parameter	Type	Required	Description
status	String	Yes	Describes the status code.
code	Integer	Yes	A status code for the authorizing processes.
sub-code	Integer	Yes	The granular-level status code which shows the reason for a failed authorization.

9.2.1 3DS 1.0 Authentication Required

The following is an example of response received for 3DS 1.0 authentication required:

<?xml version="1.0" encoding="UTF-8"?>
<root>
   <status code="2005">3d verification required</status>
   <parsed-challenge>
      <action type-id="11">
         <url content-type="application/x-www-form-urlencoded" method="post">https://3ds-acs.test.modirum.com/mdpayacs/creq?token=220646651.1670842886.KJTk10b79hUunC4uy7erl0gOsaZW7UHoEh56a0-9Un4</url>
         <hidden-fields>
            <creq>ewogICAiYWNzVHJhbnNJRCIgOiAiZjEyZjUxMDItOTI4ZC00N2I3LTg1YjAtZTM5NDhjYjIzZDY1IiwKICAgImNoYWxsZW5nZVdpbmRvd1NpemUiIDogIjAzIiwKICAgIm1lc3NhZ2VUeXBlIiA6ICJDUmVxIiwKICAgIm1lc3NhZ2VWZXJzaW9uIiA6ICIyLjIuMCIsCiAgICJ0aHJlZURTU2VydmVyVHJhbnNJRCIgOiAiMzIwYmUxM2MtYmQ4ZC01YzliLTgwMDAtMDAwMDAxMjRiYTM1Igp9</creq>
            <TermUrl>https://5j.mesb.sit.cpm.dev/mpoint/first-data/threed-redirect?referencedTransactionId=5721077</TermUrl>
         </hidden-fields>
      </action>
   </parsed-challenge>
</root>

The steps to process the authorize response for the 3DS 1.0 authentication are as follows:

Extract the content of tags<parsed-challenge>.
Do a form post of all the fields hidden-fields to the url in the action tag using browser.
Follow the instruction to complete authentication.
After the authentication is complete, it is redirected to your Accept or Decline URL.
The Callback notification with the authorization status is sent to your Callback URL.

9.2.2 3DS 2.0 Authentication Required

The following is an example of response received for 3DS 2.0 authentication required:

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <status code="2005" sub-code="2005002">3D Secure Verification Required</status>
    <web-method>&lt;html class="no-js" lang="en" xmlns="http://www.w3.org/1999/xhtml"&gt; &lt;head&gt; &lt;META http-equiv="Content-Type" content="text/html; charset=utf-8"&gt; &lt;meta http-equiv="Content-Type" content="text/html; charset=utf-8"&gt; &lt;meta charset="utf-8"&gt; &lt;title&gt;3D Secure Processing&lt;/title&gt; &lt;link href="https://3ds-mpi-cellpointmobile.test.modirum.com/mdpaympi/static/mpi.css" rel="stylesheet" type="text/css"&gt; &lt;/head&gt; &lt;body&gt; &lt;div id="main"&gt; &lt;div id="content"&gt; &lt;div id="order"&gt; &lt;h2&gt;3D Secure Processing&lt;/h2&gt; &lt;script src="https://3ds-mpi-cellpointmobile.test.modirum.com/mdpaympi/static/red.js" defer&gt;/* needed for xsl to xhtml */&lt;/script&gt; &lt;div id="spinner"&gt; &lt;img src="https://3ds-mpi-cellpointmobile.test.modirum.com/mdpaympi/static/preloader.gif" alt="Please wait.."&gt;&lt;/div&gt; &lt;img src="https://3ds-mpi-cellpointmobile.test.modirum.com/mdpaympi/static/mc_idcheck_hrz_ltd_pos_103px.png" alt="MasterCard ID Check"&gt;&lt;iframe id="tdsMmethodTgtFrame" name="tdsMmethodTgtFrame" xmlns="http://www.w3.org/1999/xhtml"&gt;&lt;!--.--&gt; &lt;/iframe&gt;&lt;form id="tdsMmethodForm" name="tdsMmethodForm" action="https://3ds-acs.test.modirum.com/mdpayacs/3ds-method" method="post" target="tdsMmethodTgtFrame"&gt; &lt;input type="hidden" name="3DSMethodData" value="eyAidGhyZWVEU1NlcnZlclRyYW5zSUQiIDogImRkZjQ5MTYxLTZiYjgtNWY5YS04MDAwLTAwMmVhNzE4N2E0ZCIsICJ0aHJlZURTTWV0aG9kTm90aWZpY2F0aW9uVVJMIiA6ICJodHRwczovLzNkcy1tcGktY2VsbHBvaW50bW9iaWxlLnRlc3QubW9kaXJ1bS5jb20vbWRwYXltcGkvTWVyY2hhbnRTZXJ2ZXI_bW49WSZ0eGlkPTIwMDM3MTg5NDg2MSZkaWdlc3Q9UFVyQ3ZnWnZZeHp0cVU1a1N2MTdTdnhjUlVXaTAwWVByNlh5MmttWCUyQkg0JTNEIiB9"&gt;&lt;input type="hidden" name="threeDSMethodData" value="eyAidGhyZWVEU1NlcnZlclRyYW5zSUQiIDogImRkZjQ5MTYxLTZiYjgtNWY5YS04MDAwLTAwMmVhNzE4N2E0ZCIsICJ0aHJlZURTTWV0aG9kTm90aWZpY2F0aW9uVVJMIiA6ICJodHRwczovLzNkcy1tcGktY2VsbHBvaW50bW9iaWxlLnRlc3QubW9kaXJ1bS5jb20vbWRwYXltcGkvTWVyY2hhbnRTZXJ2ZXI_bW49WSZ0eGlkPTIwMDM3MTg5NDg2MSZkaWdlc3Q9UFVyQ3ZnWnZZeHp0cVU1a1N2MTdTdnhjUlVXaTAwWVByNlh5MmttWCUyQkg0JTNEIiB9"&gt; &lt;/form&gt;&lt;div id="formdiv"&gt; &lt;div&gt; &lt;form id="webform0" name="ddcoll" method="POST" action="https://3ds-mpi-cellpointmobile.test.modirum.com/mdpaympi/MerchantServer" accept_charset="UTF-8"&gt; &lt;input type="hidden" name="txid" value="200371894861"&gt;&lt;input type="hidden" name="TDS2_Navigator_language" value=""&gt;&lt;input type="hidden" name="TDS2_Navigator_javaEnabled" value=""&gt;&lt;input type="hidden" name="TDS2_Navigator_jsEnabled" value=""&gt;&lt;input type="hidden" name="TDS2_Screen_colorDepth" value=""&gt;&lt;input type="hidden" name="TDS2_Screen_height" value=""&gt;&lt;input type="hidden" name="TDS2_Screen_width" value=""&gt;&lt;input type="hidden" name="TDS2_Screen_PixelDepth" value=""&gt;&lt;input type="hidden" name="TDS2_TimezoneOffset" value=""&gt;&lt;input type="hidden" name="digest" value="5woOk3ql1bNMosc5yuyLXdk8k47KCTR+uVloWvAA/XQ=" readonly="true"&gt;&lt;input type="submit" name="submitBtn" id="submitBtn" value="Please click here to continue"&gt; &lt;/form&gt; &lt;/div&gt; &lt;/div&gt; &lt;noscript&gt; &lt;div align="center"&gt; &lt;b&gt;Javascript is turned off or not supported!&lt;/b&gt; &lt;br&gt; &lt;/div&gt; &lt;/noscript&gt; &lt;/div&gt; &lt;div id="content-footer"&gt;&lt;/div&gt; &lt;/div&gt; &lt;/div&gt; &lt;/body&gt; &lt;/html&gt;</web-method>
    <return-url>https://av.uat-01.cellpointmobile.net/mpi/modirum/threed-redirect</return-url>
    <card-mask>553571******3561</card-mask>
    <expiry>01/23</expiry>
    <token>4eeb155fc20fa07a7c01d82aa68f9d22cab6257c57b6694d722cfdc8b95dce4d2f8f44e0a5c9aab14065e1f2016fc95eb0185cb62689b78e8e06346429c1aedc</token>
</root>

The steps to process the authorize response for the 3DS 2.0 authentication are as follows:

Extract the content of tag<web-method>
HTML decode the web-method content to get the HTML.
Load the HTML on the browser and follow the instruction to complete authentication.
After the authentication is complete, it is redirected to your Accept or Decline URL.
The Callback notification with authorization status is sent to your Callback URL.

10.Ticket-level Capture

This API facilitates ticket-level capture for automatic captures. After updating AID data, Velocity captures the amount internally and passes the information to PSPs for payment processing. Thereafter, it is passed to the merchant system. You do not need call the capture API. Call the update-order-data API to facilitate ticket-level auto-capture.

Use the following API to capture ticket-level information.

Path Name	Path Details
End Point	[Velocity URL]/mpoint/ update-order-data
Format/Content Type	text/xml
Authentication	HTTP basic access authentication

10.1 Request

The code below is a sample request for the Order Ticket API.

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <update-order-data>
        <transaction id="12345" order-no="FIU9YA">
            <orders>
                <line-item>
                    <product order-ref="ABC1234" sku="product-ticket">
                        <type>100</type>
                        <name>ONE WAY</name>
                        <description>MNL-CEB</description>
                        <airline-data>
                            <profiles>
                                <profile>
                                    <seq>1</seq>
                                    <title>Mr</title>
                                    <first-name>dan</first-name>
                                    <last-name>dan</last-name>
                                    <type>ADT</type>
                                    <contact-info>
                                        <email>[email protected]</email>
                                        <mobile country-id="640">9187231231</mobile>
                                    </contact-info>
                                    <additional-data>
                                        <param name="loyality_id">345rtyu</param>
                                    </additional-data>
                                </profile>
                            </profiles>
                            <billing-summary>
                                <fare-detail>
                                    <fare>
                                        <profile-seq>1</profile-seq>
                                        <description>adult</description>
                                        <currency>PHP</currency>
                                        <amount>60</amount>
                                        <product-code>ABF</product-code>
                                        <product-category>FARE</product-category>
                                        <product-item>Base fare for adult</product-item>
                                    </fare>
                                </fare-detail>
                            </billing-summary>
                            <trips>
                                <trip tag="1" seq="1">
                                    <origin external-id="MNL" country-id="640" time-zone="+08:00" terminal="1">Ninoy Aquino International Airport</origin>
                                    <destination external-id="CEB" country-id="640" time-zone="+08:00" terminal="2">Mactan Cebu International Airport</destination>
                                    <departure-time>2021-03-07T19:35:00Z</departure-time>
                                    <arrival-time>2021-03-07T21:05:00Z</arrival-time>
                                    <booking-class>Z</booking-class>
                                    <service-level>Economy</service-level>
                                    <transportation code="5J" number="1">
                                        <carriers>
                                            <carrier code="5J" type-id="Aircraft Boeing-737-9">
                                                <number>563</number>
                                            </carrier>
                                        </carriers>
                                    </transportation>
                                    <additional-data>
                                        <param name="fare_basis">we543s3</param>
                                    </additional-data>
                                </trip>
                            </trips>
                        </airline-data>
                    </product>
                    <amount>125056</amount>
                    <quantity>1</quantity>
                    <additional-data>
                        <param name="key">value</param>
                    </additional-data>
                </line-item>
                <line-item>
                    <product order-ref="ABC1237" sku="product-ticket">
                        <type>200</type>
                        <name>ONE WAY</name>
                        <description>MNL-CEB</description>
                        <airline-data>
                            <profiles>
                                <profile>
                                    <seq>1</seq>
                                    <title>Mr</title>
                                    <first-name>dan</first-name>
                                    <last-name>dan</last-name>
                                    <type>ADT</type>
                                    <contact-info>
                                        <email>[email protected]</email>
                                        <mobile country-id="640">9187231231</mobile>
                                    </contact-info>
                                    <additional-data>
                                        <param name="loyality_id">345rtyu</param>
                                    </additional-data>
                                </profile>
                            </profiles>
                            <billing-summary>
                                <add-ons>
                                    <add-on>
                                        <profile-seq>1</profile-seq>
                                        <trip-tag>2</trip-tag>
                                        <trip-seq>2</trip-seq>
                                        <description>adult</description>
                                        <currency>PHP</currency>
                                        <amount>60</amount>
                                        <product-code>ABF</product-code>
                                        <product-category>FARE</product-category>
                                        <product-item>Base fare for adult</product-item>
                                    </add-on>
                                </add-ons>
                            </billing-summary>
                            <trips>
                                <trip tag="1" seq="1">
                                    <origin external-id="MNL" country-id="640" time-zone="+08:00" terminal="1">Ninoy Aquino International Airport</origin>
                                    <destination external-id="CEB" country-id="640" time-zone="+08:00" terminal="2">Mactan Cebu International Airport</destination>
                                    <departure-time>2021-03-07T19:35:00Z</departure-time>
                                    <arrival-time>2021-03-07T21:05:00Z</arrival-time>
                                    <booking-class>Z</booking-class>
                                    <service-level>Economy</service-level>
                                    <transportation code="5J" number="1">
                                        <carriers>
                                            <carrier code="5J" type-id="Aircraft Boeing-737-9">
                                                <number>563</number>
                                            </carrier>
                                        </carriers>
                                    </transportation>
                                    <additional-data>
                                        <param name="fare_basis">we543s3</param>
                                    </additional-data>
                                </trip>
                            </trips>
                        </airline-data>
                    </product>
                    <amount>125056</amount>
                    <quantity>1</quantity>
                    <additional-data>
                        <param name="key">value</param>
                    </additional-data>
                </line-item>
            </orders>
        </transaction>
    </update-order-data>
</root>

This API must be called for each transaction associated with the order number separately. Each request contains one or more line-item that are associated with the order-ref (ticket/emd number).

Refer to the examples listed below:

Payment Method	Order # PNRABC $1000	UATP Card $100 Request 1	VISA Card $900 Request 2
Transaction ID		Transaction 1	Transaction 2
Ticket Number 1 line-item	50	50	0
Ticket Number 2 line-item	475	25	450
Ticket Number 3 line-item	475	25	450

Following are the description of the fields under update-order-data:

Parameter	Type	Required	Description
transaction/ @id	Integer	Yes	The identification number of a transaction
Transaction/order-no	string	Yes	Order number associated with the transaction.
orders	node	Yes	Contains one or more line-item. For details of all the fields under orders refer to the AID - Airline Itinerary Integration Guide.

10.2 Response

The response of this API can be either a successful or a failed transaction.

10.2.1 Success

You receive the following response for a successful transaction:

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <status code="100">Operation Success</status>
</root>

10.2.2 Fail

You receive the following response for a failed transaction:

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <status code="99">Operation Failed</status>
</root>

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <status code="99">Operation Failed</status>
</root>

11. Capture

After a customer completes the checkout process, the authorized transaction is captured. You can invoke this API to capture the payment amount. Velocity exposes an API to capture an authorized transaction. The amount field can take values equal to or less than the authorized amount. You can facilitate either a complete capture or a partial capture. If the authorized amount is greater than the authorized amount and greater than one, it is a partial capture.

Note: Invoke this API only if you enable manual capture. Do not invoke if you have enabled auto-capture.

Use the following API to capture transaction-level information:

Path Name	Path Details
End Point	[Velocity URL]/mpoint/ capture-payment
Format/Content Type	text/xml
Authentication	HTTP basic access authentication

11.1 Request

The following is an example of a request API used to capture an authorized transaction. It is sent from the merchant’s server to Velocity. It contains the transaction details of a customer.

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <capture client-id="[integer]" account="[integer]">
        <transaction id="[integer]" order-no="UAT-28577880">
            <amount country-id="100">10000</amount>
        </transaction>
    </capture>
</root>

11.2 Response

The following is an example of the response returned from Velocity server to a merchant. It contains the transaction ID and transaction status.

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <transactions client-id="[integer]">
        <transaction id="[integer]" order-no="28577880">
            <status code="1000" />
        </transaction>
    </transactions>
</root>

12. Get Payment Summary

Velocity exposes an API for retrieving the decrypted payment summary including the masked card number from various wallets.

Use the following API to get payment summary information:

Path Name	Path Details
End Point	[Velocity URL]/mpoint/ get-payment-summary
Format/Content Type	text/xml
Authentication	HTTP basic access authentication

12.1 Request

Merchants need to consume this API for wallet integration only. For example, if you have integrated Apple Pay or Google Pay and want to show the card number to your customer in a masked manner, you can call this API.

The following is an example of a request for retrieving the payment summary:

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <get-payment-summary client-id="[integer]">
        <transaction id="[integer]">
            <card type-id="16">
                <token>[Wallet Token]</token>
            </card>
        </transaction>
        <client-info language="us" version="1.28" platform="iOS/9.0.1">
        <customer-ref/>
        <device-id>86A535F6B2A414423327</device-id>
        <ip>10.14.128.7</ip>
    </client-info>
</get-payment-summary>
</root>

12.2 Response

If the Get Payment Summary API request is successful, the masked card details are shown to a customer as a response.

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <card id="7" charge-type-id="2">
        <card-number-mask>540287******4924</card-number-mask>
        <expiry>10/17</expiry>
        <card-holder-name>Joe Test</card-holder-name>
        <address country-id="200">
            <first-name>Joe</first-name>
            <last-name>Test</last-name>
            <street>4000 Ponce De Leon Blvd</street>
            <postal-code>33146</postal-code>
            <city>Coral Gables</city>
            <state>FL</state>
        </address>
    </card>
</root>

The parameters are listed and defined in the table below

Parameter	Type	Description
get-payment-summary	Object	The object which contains details of the payment summary.
client-id	Integer	The unique ID of a merchant.
transaction id	Integer	A unique transaction identification number of a transaction.
card type-id	Integer	The type of card used for a transaction.
token	String	The encrypted alpha-numeric string to represent card information used in third-part wallet.
client-info	String	The object which contains details of language used for a transaction, version, and platform details.
device-id	String	The unique device identification number from which a transaction is conducted.
card id	Integer	The ID which indicates the type of card used for a transaction.
charge-type-id	Integer	The ID to indicate the type of wallet used for a transaction.
mask	String	The masked value of a card number.
expiry	String	The expiration date of a card.
card-holder-name	String	The name of a card holder.
address	Object	The object which contains address details such as country-id, first name, last name, street name, postal code, city, and state.

13. Get Payment Methods

The Get Payment Methods API returns a list of payment methods with which a customer is eligible to pay. Their eligibility is based on the Curated Payment Business Rule that is applicable to the transaction.

Path Name	Path Details
End Point	[Velocity URL]/crs/routingservice/external/get-payment-methods
Format/Content Type	text/xml
Authentication	HTTP basic access authentication

13.1 Request

The following is an example of a request for the Get Payment Methods API:

?xml version="1.0" encoding="UTF-8"?>
<payment_method_search_criteria>
    <event_id>5754676</event_id>
    <account_id>101118</account_id>
    <transaction>
        <type_id>1</type_id>
        <order_no>MLW761</order_no>
        <product_type>100</product_type>
        <fees>
            <fee>
                <value>2300</value>
                <type>1</type>
            </fee>
        </fees>
        <amount>
            <value>10000</value>
            <country_id>407</country_id>
            <currency_id>840</currency_id>
            <decimal>2</decimal>
        </amount>
        <orders>
            <line_item>
                <product>
                    <name>RETURN</name>
                    <sku>3HHQM6</sku>
                    <description>return</description>
                    <airline_data>
                        <flight_details>
                            <flight_detail>
                                <tag>1</tag>
                                <trip_count>1</trip_count>
                                <service_level>10</service_level>
                                <service_class>E</service_class>
                                <departure_date>2022-12-15T05:14:00Z</departure_date>
                                <arrival_date>2022-12-15T06:10:00Z</arrival_date>
                                <departure_country>405</departure_country>
                                <arrival_country>405</arrival_country>
                                <departure_airport>
                                    <iata>MDE</iata>
                                </departure_airport>
                                <arrival_airport>
                                    <iata>BOG</iata>
                                </arrival_airport>
                                <time_zone>-5:00</time_zone>
                            </flight_detail>
                            <flight_detail>
                                <tag>1</tag>
                                <trip_count>2</trip_count>
                                <service_level>10</service_level>
                                <service_class>E</service_class>
                                <departure_date>2022-12-15T07:10:00Z</departure_date>
                                <arrival_date>2022-12-15T08:15:00Z</arrival_date>
                                <departure_country>405</departure_country>
                                <arrival_country>405</arrival_country>
                                <departure_airport>
                                    <iata>BOG</iata>
                                </departure_airport>
                                <arrival_airport>
                                    <iata>AXM</iata>
                                </arrival_airport>
                                <time_zone>-5:00</time_zone>
                            </flight_detail>
                        </flight_details>
                        <billing_summary>
                            <fare_detail>
                                <fare>
                                    <profile_seq>1</profile_seq>
                                    <description>Base Fare</description>
                                    <currency>COP</currency>
                                    <amount>35710000</amount>
                                    <product_code>BASE</product_code>
                                    <product_category>FARE</product_category>
                                    <product_item>Base Fare</product_item>
                                </fare>
                                <fare>
                                    <profile_seq>1</profile_seq>
                                    <description>Localization Key - Sales Tax Colombia</description>
                                    <currency>COP</currency>
                                    <amount>2226000</amount>
                                    <product_code>YSTR</product_code>
                                    <product_category>TAX</product_category>
                                    <product_item>Sales Tax Colombia</product_item>
                                </fare>
                            </fare_detail>
                            <add_ons>
                                <add_on>
                                    <profile_seq>1</profile_seq>
                                    <trip_tag>1</trip_tag>
                                    <trip_seq>1</trip_seq>
                                    <description>Localization Key - SEAT PRICE</description>
                                    <currency>COP</currency>
                                    <amount>2999000</amount>
                                    <product_code>SEAT</product_code>
                                    <product_category>SERVICE</product_category>
                                    <product_item>10E</product_item>
                                </add_on>
                                <add_on>
                                    <profile_seq>2</profile_seq>
                                    <trip_tag>2</trip_tag>
                                    <trip_seq>1</trip_seq>
                                    <description>Localization Key - CBAG</description>
                                    <currency>COP</currency>
                                    <amount>18000000</amount>
                                    <product_code>CBAG</product_code>
                                    <product_category>Service</product_category>
                                    <product_item>3RD CHECKED BAG OR MORE 23KG</product_item>
                                </add_on>
                            </add_ons>
                        </billing_summary>
                    </airline_data>
                </product>
            </line_item>
            <amount>
                <country_id>407</country_id>
                <value>273891000</value>
            </amount>
        </orders>
    </transaction>
    <client_info>
        <platform>HTML5</platform>
        <language>en</language>
        <version>2.00</version>
        <sdk-version>2.0.0</sdk-version>
        <mobile>
            <mobile>9990521077</mobile>
            <mobile_type>MobileEnriched</mobile_type>
            <country_id>407</country_id>
            <validated>true</validated>
        </mobile>
        <email>
            <email>[email protected]</email>
            <email_type>EmailEnriched</email_type>
            <validated>true</validated>
        </email>
        <device_id>2E8667F78B23402BBFF6176313BD58D314566333</device_id>
        <ip>10.36.1.15</ip>
        <client_id>10101</client_id>
    </client_info>
</payment_method_search_criteria>

13.2 Response

The following is an example of a response for the Get Payment Methods API:

<payment_method_search_response>
    <payment_methods>
        <payment_method>
            <id>8</id>
            <psp_type/>
            <preference>1</preference>
            <state_id>1</state_id>
        </payment_method>
        <payment_method>
            <id>7</id>
            <psp_type/>
            <preference>2</preference>
            <state_id>1</state_id>
        </payment_method>

    </payment_methods>
</payment_method_search_response>

The parameters are listed and defined in the table below.

Parameter

Type

Required

Description

event_id

Integer

Yes

A unique reference ID used for audit and tracking purposes.

account_id

Integer

Yes

A storefront ID to identify web/mobile payment.

payment_group_code

String

A group code provided by the merchant and used by the customer while making payments.

paymentmethod_id

Integer

Yes

A card ID as per the mPoint system defined ID.
For example, 8 for Visa or 7 for Mastercard.

paymentmethod_id

Integer

Yes

A card ID as per the mPoint system defined ID.
For example, 8 for Visa or 7 for Mastercard.

state_id

Integer

Yes

The state ID indicates whether the payment method is enabled or disabled on the payment page. This is used and interpreted by the front end system.
System defined state ids in mPoint. Default is 1 i.e enabled.

CARD_ENABLED_STATE = 1;

CARD_DISABLED_BY_MERCHANT_STATE = 2;

CARD_DISABLED_BY_PSP_STATE = 3;

CARD_PREREQUISITE_NOT_MET_STATE = 4;

CARD_TEMPORARILY_UNAVAILABLE_STATE = 5;

CARD_DISABLED = 6;

card_schemes

Array

This is applicable for wallet payment type only. It contains the list of card schemes allowed inside the Card Wallet, which are displayed for the customer to use for payments.

account

Integer

The unique ID associated with a payment transaction. It is optional. If you omit this parameter, the payment transaction is associated with the default sub-account.

client-id

Integer

Yes

The unique ID configured for a merchant on the Velocity POP.

Transaction Parameters

transaction

Integer

Yes

Fee > type-1 is used as the service fee rule condition.

order-no

String

Yes

The order ID that a merchant generates. It is an alphanumeric string.
Note: Some Payment Providers have strict guidelines for the order-no. The recommended pattern is "[a-zA-Z0-9._-].

currency-id

Integer

The currency of the transaction amount. This should be the ISO 4217 numeric code.

type-id

Integer

The type of transaction used for making payment. Velocity supports the following transaction types:

Value	Transaction types	Examples
1	Online shopping	S&B Purchase
2	Offline shopping	S&B Purchase
3	Self Service Online	MYB Ancillary Purchase, MYB Change Itinerary Payment, OLCI Ancillary Purchase
4	Self Service Offline	MYB Pay Later
5	Self Service Online	MYB/Self Service Online with additional rules on FOP-- Managed Booking txn where additional rules on FOP can be configured
6	Self Service Online	CPL - Payment Link Transaction. Transaction originated from payment link

session-id

Integer

The ID of a session used for multiple payment transactions during one payment flow. For example, split payment or retry of a failed payment transaction.

amount

Integer

Yes

fees/fee

Integer

This the addition fees if applicable for the transaction like for specific scenarios like administrative fee for offline payment or pay later.

For example, the smallest currency of USD is penny. If the transaction amount is $120.30, then the amount field contains value 12030.
Note: The fee is always a non-decimal value in the request. The object amount contains the country-id and currency-id parameters.

country-id

Integer

Yes

The CPD-specific country code, which is available in appendix.

callback-url

String

The absolute URL to the back office of a merchant where Velocity POP sends the payment status.
Note: If you do not provide this parameter, Velocity uses the default URL.

accept-url

String

cancel-url

String

decline-url

String

The absolute URL where Velocity directs customers if the payment transaction fails. The URL is used for redirecting to either the HPP or merchant’s page after a payment failure.

auth-url

String

The URL which used for single sign-on authentication if provided by an external system.

service-type-id

Integer

A value to indicate the type of exchange services used for a transaction. The ID indicates if the FX services such as DCC, MCP, and PCC are opted. The ID is a two-digit number XY in which:

X - Represents the type of FX used in a transaction.
Y - Represents the service usedꟷ it can be:
- Opt-in, which has value as “1”
- Opt-out, which has value as “2”

The following table shows the possible values of exchange service ID:

ID (XY)	Service (X)	Opted (Y)
11	DCC	Opted
12	DCC	Not Opted
21	MCP	Opted
22	MCP	Not Opted
31	External MCP	Opted
32	External MCP	Not Opted
41	PCC	Opted
42	PCC	Not Opted

auth-token

String

A unique token sent to the specified auth-url to authenticate customers when they pay with a stored card and use single sign-on.

hmac

String

Yes

The Message Authentication Code. It is calculated by creating a sha-512 hash comprising the following input fields in the listed order:

clientid
account
orderid
callback-url
amount
auth-url
customer-ref
auth-token
email
mobile
[salt]

orders

Object

The order details with following details: event, location, date or time, ticket type, cost, booking fee, quantity, and total price.
Note: This parameter is used for airline data only, defined in separate guide for Airline Data.

Merchant information parameters

client-info

Object

Yes

An object of client-info, which contains the following merchant details: language, version, platform, and profile ID.

platform

String

yes

The platform from which the request is sent. For example, web, iOS, Android, B2B, and B2C.

sdk-version

Integer

yes

The version of SDK used to send the request.
Note: Use 2.1.0 SDK version in the request.

version

String

yes

The version of the API or application that send the request.

language

String

yes

The language that Velocity uses as default when translating the payment pages. Velocity uses a default language set by a merchant if this parameter is omitted.
Note: Velocity language codes are based upon the ISO- 639-1 standard. Refer http://en.wikipedia.org/wiki/List_of_ISO_639-1_codes for details.

mobile

Integer

The MSISDN of a customer without International Dialling Code.
Note: A mobile number can be mandatory or optional, based on the requirement of a merchant or a PSP.

country-id

Integer

The CPD-specific country code, which is provided on request.
Note: Mandatory only if mobile number is provided.

String

device-id

String

The device ID of a customer’s device.
Note: device ID is optional for a web channel.

14.Get Transaction Status

Velocity exposes an API for retrieving the transaction status based on the transaction ID and session status based on session ID. This API is useful to reverify a transaction status when, for example, the authorize API does not show a response because of network issues or after redirection flow.

Note: Consider the following items:

CPD recommends integrating the Get Status API, which is optional.
You can configure this API to view the transaction status on your web portal or on your server.

Refer to transaction Status Codes for details

You can use the following API to get the payment summary information:

Path Name	Path Details
End Point	[Velocity URL]/mpoint/get-transaction-status
Format/Content Type	text/xml
Authentication	HTTP basic access authentication

14.1 Request

The following is an example for fetching Transaction status:

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <get-transaction-status>
        <client-id>10101</client-id>
        <transactions>
            <transaction-id>5297501</transaction-id>
        </transactions>
    </get-transaction-status>
</root>

The following is an example for fetching Session status:

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <get-transaction-status>
        <client-id>10101</client-id>
        <session_id>533234</session_id>
    </get-transaction-status>
</root>

The parameters are listed and defined in the table below.

Parameter	Type	Required	Description
Client-id	String	Yes	A unique ID for Velocity, which CPD creates for a merchant.
account-id	String	Yes	The ID or number for a sub-account with which a payment transaction is associated. CPD provides the account number.
transaction-id	String	Yes	CPD Transaction ID for which status is requested.

14.2 Response

The following are examples of a response for the Get Transaction Status API:

14.2.1 Card Payment Transaction Status

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <transaction accoutid="100630" approval-code="121000" card-id="7" clientid="10063" extid="CPM5670_
8060858" id="8060858" language="en" mpoint-id="8060858" order-no="CPM5670" payment-method-id="1"
psp-id="4" session-id="178752" session-type=" walletid="4">
        <amount conversationRate="1" country-id="103" currency="826" currency-code="GBP" decimals="2"
format="{CURRENCY}{PRICE}" pending="0" symbol="Â£">1000</amount>
        <card-mask>554433******0003</card-mask>
        <card-expiry>10/23</card-expiry>
        <card-name>Master Card</card-name>
        <psp-name>WorldPay</psp-name>
        <accept-url>https://cpm-hpp2-sit2.cellpointmobile.com/views/redirect_response.php</accept-url>
        <cancel-url>https://cpm-hpp2-sit-01.cellpoint.dev/views/</cancel-url>
        <css-url>https://s3-ap-southeast-1.amazonaws.com/devcpmassets/marchant/et/style.css</css-url>
        <logo-url>https://hpp-uat-02.cellpointmobile.net/css/swag/img/cebu.png</logo-url>
        <google-analytics-id>%7B%22id%22%3A%22GTM-TJHF9HX%22%2C%22auth%22%3A%220bNRJejIX9R
vP164Mor_Tw%22%2C%22preview%22%3A%22env-61%22%2C%22env%22%3A%22sit%22%7D</google-analytics-id>
        <form-method>GET</form-method>
        <auto-redirect>true</auto-redirect>
        <createdDate>2021-03-04</createdDate>
        <createdTime>07:55:32</createdTime>
        <status>
            <status-message id="1001" position="1">Input Valid</status-message>
            <status-message id="1009" position="2">Payment Initialized with Payment Service Provider</status-message>
            <status-message id="1990" position="14">Callback Accepted</status-message>
            <status-message id="1990" position="17">Callback Accepted</status-message>
            <status-message id="1990" position="23">Callback Accepted</status-message>
            <status-message id="1990" position="25">Callback Accepted</status-message>
            <status-message id="1991" position="12">Callback Constructed</status-message>
            <status-message id="1991" position="15">Callback Constructed</status-message>
            <status-message id="1991" position="20">Callback Constructed</status-message>
            <status-message id="1991" position="22">Callback Constructed</status-message>
            <status-message id="1992" position="13">Callback Connected</status-message>
            <status-message id="1992" position="16">Callback Connected</status-message>
            <status-message id="1992" position="21">Callback Connected</status-message>
            <status-message id="1992" position="24">Callback Connected</status-message>
            <status-message id="2000" position="9">Payment authorized by PSP</status-message>
            <status-message id="2001" position="18">Payment captured by PSP</status-message>
            <status-message id="2005" position="5">3d verification required for Authorization</status-message>
            <status-message id="2006" position="7">3d verification successful</status-message>
            <status-message id="3010" position="3">Pre Auth Initiated</status-message>
            <status-message id="3014" position="4">Pre Auth Review</status-message>
            <status-message id="3117" position="10">Post Auth Screen Skip - Business Rules</status-message>
            <status-message id="4030" position="19">Session Complete</status-message>
            <status-message id="20012" position="11">Capture Initialized</status-message>
            <status-message id="2005001" position="6">Authentication Card is enrolled Attempt authentication using 3DSv1.0</status-message>
            <status-message id="2006001" position="8">Authentication Fully</status-message>
        </status>
        <sign>8aabe019e70972acaddb0bc09101e35e</sign>
        <client-info language="en" platform="app" profileid="-1">
            <mobile country-id="640" operator-id="64000">9876543210</mobile>
            <email>[email protected]</email>
            <customer-ref />
            <device-id />
        </client-info>
        <additional-data>
            <param name="pre_auth_ext_status_code">105</param>
            <param name="eci">02</param>
            <param name="xid">MDAwMDAwMDAwMDAwMDgwNjA4NTg=</param>
            <param name="merchant">CELLPOINT</param>
            <param name="issuer-approval-code">121000</param>
        </additional-data>
        <address>
            <first-name>Test</first-name>
            <last-name>Automation</last-name>
            <street>MyStreet</street>
            <street2 />
            <postal-code>8060858</postal-code>
            <city>Pune</city>
            <state>MH</state>
            <country>
                <name>Philippines</name>
                <code>608</code>
                <alpha2code>PH</alpha2code>
                <alpha3code>PHL</alpha3code>
            </country>
        </address>
    </transaction>
</root>

14.2.2 APM (PayPal) Transaction Status

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <transaction accoutid="100770" approval-code="" card-id="28" clientid="10077" extid="69U82640BX0039150"
id="8059428" language="en" mpoint-id="8059428" order-no="WAIKALZ" payment-method-id="4" psp-id="24"
session-id="177544" session-type="" walletid="0">
        <amount conversationRate="1" country-id="640" currency="608" currency-code="PHP" decimals="2" format=""
pending="0" symbol="â±">55500</amount>
        <card-name>PayPal</card-name>
        <psp-name>PayPal</psp-name>
        <accept-url>https://hpp2.sit-01.cellpoint.dev/views/redirect_response.php</accept-url>
        <cancel-url>https://hpp2.sit-01.cellpoint.dev/views/redirect_response.php</cancel-url>
        <css-url>https://cpd-hpp2-devassests.s3.eu-central-1.amazonaws.com/10077</css-url>
        <logo-url>https://cpd-hpp2-devassests.s3.eu-central-1.amazonaws.com/10077/logo.png</logo-url>
        <google-analytics-id>%7B%22id%22%3A%22GTM-TJHF9HX%22%2C%22auth%22%3A%220bNRJejIX9RvP164Mor
_Tw%22%2C%22preview%22%3A%22env-61%22%2C%22env%22%3A%22sit%22%7D</google-analytics-id>
        <form-method>GET</form-method>
        <auto-redirect>true</auto-redirect>
        <createdDate>2021-02-27</createdDate>
        <createdTime>06:34:04</createdTime>
        <status>
            <status-message id="2001" position="1">Payment captured by PSP</status-message>
        </status>
        <sign>bf2f4194205c9839e67547b860c4a05b</sign>
        <client-info language="en" platform="spa" profileid="CEBUPROFILE123">
            <mobile country-id="640" operator-id="64000">2147483647</mobile>
            <email>[email protected]</email>
            <customer-ref>[email protected]</customer-ref>
            <device-id />
        </client-info>
        <additional-data>
            <param name="invoiceid">8059428</param>
        </additional-data>
    </transaction>
</root>

14.2.3 APM (GRAB PAY) Transaction Status

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <transaction accoutid="100770" approval-code="" card-id="28" clientid="10077" extid="69U82640BX0039150"
id="8059428" language="en" mpoint-id="8059428" order-no="WAIKALZ" payment-method-id="4" psp-id="24"
session-id="177544" session-type="" walletid="0">
        <amount conversationRate="1" country-id="640" currency="608" currency-code="PHP" decimals="2" format=""
pending="0" symbol="â±">55500</amount>
        <card-name>PayPal</card-name>
        <psp-name>PayPal</psp-name>
        <accept-url>https://hpp2.sit-01.cellpoint.dev/views/redirect_response.php</accept-url>
        <cancel-url>https://hpp2.sit-01.cellpoint.dev/views/redirect_response.php</cancel-url>
        <css-url>https://cpd-hpp2-devassests.s3.eu-central-1.amazonaws.com/10077</css-url>
        <logo-url>https://cpd-hpp2-devassests.s3.eu-central-1.amazonaws.com/10077/logo.png</logo-url>
        <google-analytics-id>%7B%22id%22%3A%22GTM-TJHF9HX%22%2C%22auth%22%3A%220bNRJejIX9RvP164Mor
_Tw%22%2C%22preview%22%3A%22env-61%22%2C%22env%22%3A%22sit%22%7D</google-analytics-id>
        <form-method>GET</form-method>
        <auto-redirect>true</auto-redirect>
        <createdDate>2021-02-27</createdDate>
        <createdTime>06:34:04</createdTime>
        <status>
            <status-message id="2001" position="1">Payment captured by PSP</status-message>
        </status>
        <sign>bf2f4194205c9839e67547b860c4a05b</sign>
        <client-info language="en" platform="spa" profileid="CEBUPROFILE123">
            <mobile country-id="640" operator-id="64000">2147483647</mobile>
            <email>[email protected]</email>
            <customer-ref>[email protected]</customer-ref>
            <device-id />
        </client-info>
        <additional-data>
            <param name="invoiceid">8059428</param>
        </additional-data>
    </transaction>
</root>

14.2.4 Split Payment Session Status

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <session id="533234" total-amount="160000000" type="2">
        <amount alpha2code="CO" alpha3code="COL" code="170" country-id="405" currency="COP" currency-id="170" format="" symbol="$">0</amount>
        <status>4030</status>
    </session>
    <transaction accoutid="101011" approval-code="654321" card-id="7" clientid="10101" extid="000000033710000442590000100001" id="5297500" language="en" mpoint-id="5297500" order-no="QLG763" payment-method-id="1" psp-id="21" session-id="533234" session-type="2" txn-type-id="1" walletid="-1">
        <amount conversationRate="1" country-id="405" currency="170" currency-code="COP" decimals="2" format="" pending="0" symbol="$">80000000</amount>
        <card-mask>530371******8783</card-mask>
        <card-expiry>10/23</card-expiry>
        <card-name>Master Card</card-name>
        <psp-name>GlobalCollect</psp-name>
        <accept-url>https://hpp2.sit-01.cellpoint.dev/views/redirect_response.php</accept-url>
        <cancel-url>https://hpp2.sit-01.cellpoint.dev/views/redirect_response.php</cancel-url>
        <css-url>https://cpd-hpp2-devassests.s3.eu-central-1.amazonaws.com/10101</css-url>
        <logo-url>https://cpd-hpp2-devassests.s3.eu-central-1.amazonaws.com/10101/logo.png</logo-url>
        <google-analytics-id>GTM-WPHV68Z</google-analytics-id>
        <form-method />
        <auto-redirect>true</auto-redirect>
        <createdDate>2022-05-24</createdDate>
        <createdTime>11:27:53</createdTime>
        <status>
            <status-message id="3011" position="1">Pre Auth Success</status-message>
            <status-message id="2001" position="2">Payment captured by PSP</status-message>
        </status>
        <sign>e9e738e8e781c600de232d1b4bbcb640</sign>
        <client-info language="en" platform="spa" profileid="-1">
            <mobile country-id="405" operator-id="40500">9377178759</mobile>
            <email>[email protected]</email>
            <customer-ref>[email protected]</customer-ref>
            <device-id />
        </client-info>
        <additional-data>
            <param name="hmac">6146073de014b302c4d2f6b5a1cb81da4ace9fd166ed9bc62eb3b513b087c45a80c654952e8b2dd5ca0e141a0e4b04f0741f274a6f5ab9fde0fcf4701264979e</param>
            <param name="card-holder-name">Chris Harris</param>
            <param name="pre_auth_ext_id">6533916842106908704010</param>
            <param name="pre_auth_ext_status_code">100</param>
            <param name="Response_Code">800</param>
            <param name="hold_fee_amount">2300</param>
            <param name="hold_fee_currency_code">COP</param>
            <param name="platform">WEBB2C</param>
            <param name="_ga">2.168694248.833265534.1632121657-2073837615.1627877376</param>
            <param name="office_id">BOGAV08AK</param>
        </additional-data>
        <address>
            <first-name>Rohan</first-name>
            <last-name>Deo</last-name>
            <street>141/2 Andul test</street>
            <street2 />
            <postal-code>711103</postal-code>
            <city>Kolkata</city>
            <state>Maharastra</state>
            <country>
                <name>Colombia</name>
                <code>170</code>
                <alpha2code>CO</alpha2code>
                <alpha3code>COL</alpha3code>
            </country>
            <mobile idc="63">9898989898</mobile>
            <email>[email protected]</email>
        </address>
    </transaction>
    <transaction accoutid="101011" approval-code="654321" card-id="8" clientid="10101" extid="000000033710000442600000100001" id="5297501" language="en" mpoint-id="5297501" order-no="QLG763" payment-method-id="1" psp-id="21" session-id="533234" session-type="2" txn-type-id="1" walletid="-1">
        <amount conversationRate="1" country-id="405" currency="170" currency-code="COP" decimals="2" format="" pending="0" symbol="$">80000000</amount>
        <card-mask>451307******5348</card-mask>
        <card-expiry>10/23</card-expiry>
        <card-name>VISA</card-name>
        <psp-name>GlobalCollect</psp-name>
        <accept-url>https://hpp2.sit-01.cellpoint.dev/views/redirect_response.php</accept-url>
        <cancel-url>https://hpp2.sit-01.cellpoint.dev/views/redirect_response.php</cancel-url>
        <css-url>https://cpd-hpp2-devassests.s3.eu-central-1.amazonaws.com/10101</css-url>
mobile>
            <email>[email protected]</email>
        </address>
    </transaction>        <logo-url>https://cpd-hpp2-devassests.s3.eu-central-1.amazonaws.com/10101/logo.png</logo-url>
        <google-analytics-id>GTM-WPHV68Z</google-analytics-id>
        <form-method />
        <auto-redirect>true</auto-redirect>
        <createdDate>2022-05-24</createdDate>
        <createdTime>11:28:17</createdTime>
        <status>
            <status-message id="3011" position="1">Pre Auth Success</status-message>
            <status-message id="2001" position="2">Payment captured by PSP</status-message>
        </status>
        <sign>d3fb3b3156f825de5afd0b80047493ef</sign>
        <client-info language="en" platform="spa" profileid="-1">
            <mobile country-id="405" operator-id="40500">9377178759</mobile>
            <email>[email protected]</email>
            <customer-ref>[email protected]</customer-ref>
            <device-id />
        </client-info>
        <additional-data>
            <param name="hmac">6146073de014b302c4d2f6b5a1cb81da4ace9fd166ed9bc62eb3b513b087c45a80c654952e8b2dd5ca0e141a0e4b04f0741f274a6f5ab9fde0fcf4701264979e</param>
            <param name="card-holder-name">Chris Harris</param>
            <param name="pre_auth_ext_id">6533917086316951404009</param>
            <param name="pre_auth_ext_status_code">100</param>
            <param name="Response_Code">800</param>
            <param name="hold_fee_amount">2300</param>
            <param name="hold_fee_currency_code">COP</param>
            <param name="platform">WEBB2C</param>
            <param name="_ga">2.168694248.833265534.1632121657-2073837615.1627877376</param>
            <param name="office_id">BOGAV08AK</param>
        </additional-data>
        <address>
            <first-name>Rohan</first-name>
            <last-name>Deo</last-name>
            <street>141/2 Andul test</street>
            <street2 />
            <postal-code>711103</postal-code>
            <city>Kolkata</city>
            <state>Maharastra</state>
            <country>
                <name>Colombia</name>
                <code>170</code>
                <alpha2code>CO</alpha2code>
                <alpha3code>COL</alpha3code>
            </country>
            <mobile idc="63">9898989898</
    <transaction accoutid="101011" approval-code="" card-id="0" clientid="10101" extid="" id="5310635" language="gb" mpoint-id="5310635" order-no="" payment-method-id="1" psp-id="0" session-id="533234" session-type="2" txn-type-id="40" walletid="-1">
        <amount conversationRate="1" country-id="405" currency="170" currency-code="COP" decimals="2" format="" pending="0" symbol="$">0</amount>
        <card-name>System Record</card-name>
        <psp-name>System Record</psp-name>
        <accept-url />
        <cancel-url />
        <css-url>https://cpd-hpp2-devassests.s3.eu-central-1.amazonaws.com/10101</css-url>
        <logo-url>https://cpd-hpp2-devassests.s3.eu-central-1.amazonaws.com/10101/logo.png</logo-url>
        <google-analytics-id>GTM-WPHV68Z</google-analytics-id>
        <form-method />
        <auto-redirect>true</auto-redirect>
        <createdDate>2022-05-31</createdDate>
        <createdTime>10:26:48</createdTime>
        <status />
        <sign>d331679f5a42d4579bb375e6d5034ac7</sign>
        <client-info language="gb" platform="">
            <mobile country-id="0" operator-id="0" />
            <email />
            <customer-ref />
            <device-id />
        </client-info>
        <additional-data>
            <param name="hold_fee_amount">2300</param>
            <param name="hold_fee_currency_code">COP</param>
            <param name="platform">WEBB2C</param>
            <param name="_ga">2.168694248.833265534.1632121657-2073837615.1627877376</param>
            <param name="office_id">BOGAV08AK</param>
        </additional-data>
    </transaction>
    <transaction accoutid="101011" approval-code="" card-id="0" clientid="10101" extid="" id="5326993" language="gb" mpoint-id="5326993" order-no="" payment-method-id="1" psp-id="0" session-id="533234" session-type="2" txn-type-id="40" walletid="-1">
        <amount conversationRate="1" country-id="405" currency="170" currency-code="COP" decimals="2" format="" pending="0" symbol="$">0</amount>
        <card-name>System Record</card-name>
        <psp-name>System Record</psp-name>
        <accept-url />
        <cancel-url />
        <css-url>https://cpd-hpp2-devassests.s3.eu-central-1.amazonaws.com/10101</css-url>
        <logo-url>https://cpd-hpp2-devassests.s3.eu-central-1.amazonaws.com/10101/logo.png</logo-url>
        <google-analytics-id>GTM-WPHV68Z</google-analytics-id>
        <form-method />
        <auto-redirect>true</auto-redirect>
        <createdDate>2022-06-09</createdDate>
        <createdTime>20:17:34</createdTime>
        <status />
        <sign>0eddfdf2f525a316cc15846c42684b12</sign>
        <client-info language="gb" platform="">
            <mobile country-id="0" operator-id="0" />
            <email />
            <customer-ref />
            <device-id />
        </client-info>
        <additional-data>
            <param name="hold_fee_amount">2300</param>
            <param name="hold_fee_currency_code">COP</param>
            <param name="platform">WEBB2C</param>
            <param name="_ga">2.168694248.833265534.1632121657-2073837615.1627877376</param>
            <param name="office_id">BOGAV08AK</param>
        </additional-data>
    </transaction>
    <transaction accoutid="101011" approval-code="" card-id="0" clientid="10101" extid="" id="5388333" language="gb" mpoint-id="5388333" order-no="" payment-method-id="1" psp-id="0" session-id="533234" session-type="2" txn-type-id="40" walletid="-1">
        <amount conversationRate="1" country-id="405" currency="170" currency-code="COP" decimals="2" format="" pending="0" symbol="$">0</amount>
        <card-name>System Record</card-name>
        <psp-name>System Record</psp-name>
        <accept-url />
        <cancel-url />
        <css-url>https://cpd-hpp2-devassests.s3.eu-central-1.amazonaws.com/10101</css-url>
        <logo-url>https://cpd-hpp2-devassests.s3.eu-central-1.amazonaws.com/10101/logo.png</logo-url>
        <google-analytics-id>GTM-WPHV68Z</google-analytics-id>
        <form-method />
        <auto-redirect>true</auto-redirect>
        <createdDate>2022-07-11</createdDate>
        <createdTime>21:07:58</createdTime>
        <status />
        <sign>ef2023d31ff47087730d42c83992f3c3</sign>
        <client-info language="gb" platform="">
            <mobile country-id="0" operator-id="0" />
            <email />
            <customer-ref />
            <device-id />
        </client-info>
        <additional-data>
            <param name="hold_fee_amount">2300</param>
            <param name="hold_fee_currency_code">COP</param>
            <param name="platform">WEBB2C</param>
            <param name="_ga">2.168694248.833265534.1632121657-2073837615.1627877376</param>
            <param name="office_id">BOGAV08AK</param>
        </additional-data>
    </transaction>
</root>

15.Refund or Void Transaction

You can use the refund transaction API to refund a transaction to a customer. The refund is based on the amount you provide. You can provide a partial or complete refund.

If you do not specify an amount, a customer receives the complete refund. Velocity exposes an API to cancel an authorized transaction or refund a captured transaction based on the status of the transaction. The Amount field can take values equal to or less that the captured or authorized amount.

Path Name	Path Details
End Point	[Velocity URL]/mpoint/ refund
Format/Content Type	text/xml
Authentication	HTTP basic access authentication

15.1 Request

The following is an example of a Refund Transaction request:

<?xml version="1.0" encoding="UTF-8"?>
<root>
  <refund client-id = "[integer]">
      <transaction order-no="XCDFGG" id="1859798">
        <amount country-id="200">14000</amount>
        <external_claim_reference>ABCD1234</external_claim_reference>
      </transaction>
      <source>API</source>
  </refund>
</root>

The parameters are listed and defined in the table below.

Parameter	Type	Description
external_claim_reference	String	The External Claim Reference number for refund request. Optional. Maximum length – 20 characters.
source	String	The source of refund request. Optional. Maximum length – 20 characters.

15.2 Response

The following is an example of a Refund Transaction response:

Note: If the status code is 1000, the refund is successful. Other rest response codes indicate a failure. Refer to Refund Payment codes for details.

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <status code="1000"> [message] <status/>
</root>

OR

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <status code="9400">
    <!--For Exceptions-->
        <exception type="http">
            <code>400</code>
        </exception>
    </status>
</root>

16.Bulk Refund or Void Transaction

You can use the bulk-refund API to refund multiple transactions to a customer in a single request. The refunds are based on the amount you provide. You can provide a partial or complete refund.

Velocity exposes an API to cancel an authorized transaction or refund a captured transaction based on the status of the transaction. The Amount field can take values equal to or less than the captured or authorized amount. Amount is a mandatory field.

Path Name	Path Details
End Point	[Velocity URL]/mpoint/bulk-refund
Format/Content Type	text/xml
Authentication	HTTP basic access authentication

16.1 Request

The following is an example of a Refund Transaction request:

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <refund client-id="[integer]" account = "[integer]">
        <transaction id="5768217" order-no="UID346">
            <amount country-id="200">158726</amount>
        </transaction>
    </refund>
    <refund client-id="[integer]" account = "[integer]">
        <transaction id="5768212" order-no="JZC273">
            <amount country-id="200">251100</amount>
        </transaction>
    </refund>
</root>

16.2 Response

The following is an example of a Refund Transaction response:

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <transactions client-id="[integer]">
        <transaction id="5768217" order-no="UID346">
            <status code="1000"> [message] <status/>
        </transaction>
    </transactions>
    <transactions client-id="[integer]">
        <transaction id="5768212" order-no="JZC273">
            <status code="1000"> [message] <status/>
        </transaction>
    </transactions>
</root>

<?xml version="1.0" encoding="UTF-8"?>
<root>
    <status code="9400">
        <!--For Exceptions-->
        <exception type="http">
            <code>400</code>
        </exception>
    </status>
</root>

Note: If the status code is 1000, the refund is successful. Other rest response codes indicate a failure. Refer to Refund Payment codes for details.

17.Callback Request to Merchant Server from Velocity

After Velocity completes processing a transaction, the customers know if their payment was processed. The callback request informs you about the payment status as an HTTP POST. This is an asynchronous message in a separate HTTP transaction initiated from Velocity. It is in addition to the original synchronous response to the payment request and the user redirect to confirmation page.

The following is an example of a callback request:

mpoint-id=8068110&office-id=PHPNMA&ep-number=PM10004843&invoice-no=2CQQJKMT050320180&issuer-approval-code=007283&fraud_status_code=3014&fraud_status_desc=Pre+Auth+Review&pre_auth_ext_id=5900006009536418604009&pre_auth_ext_status_code=105&post_auth_ext_id=6163976912096333904010&post_auth_ext_status_code=ACCEPT&txn-status=A&card-holder-name=Primary Mastercard Card&orderid=NL4PJN&status=2001&desc=Payment+captured+by+PSP&exchange_rate=1&amount=358700&fee=0&currency=CNY&decimals=2&sale_amount=358700&sale_currency=CNY&sale_decimals=2&mobile=22532290&operator=13600&language=us&card-id=7&card-number=557781%2A%2A%2A%2A%2A%2A0004&pspid=1951911&device-id=12ABC&psp-name=2c2p-alc&description=Captured&hmac=bac9357b196c4cf17cede735ba68c75aee98dc17&email=email%40example.name&expiry=2023-01&session-id=106800&customer-country-id=200&approval-code=360020&payment-method=CD&payment-type=1&invoice-no=2CQQJKMT050320180&date-time=2020-04-06T08:33:28+00:00&local-date-time=2020-04-06T16:33:28+08:00&issuing-bank=sbi&billing_first_name=Abc&billing_last_name=xyz&billing_street_address=Barshinger+Avenue&billing_city=New+York&billing_country=640&billing_state=Agusan+del+Norte&billing_postal_code=212435&billing_email=data%40test.com&billing_mobile=2147483647&billing_idc=200&service_type_id=11&session-type-id=1

The following is a refund callback sample:

mpoint-id=1234556&orderid=TESTID&status=2003&desc=Payment+Refunded&exchange_rate=1&amount=12345&currency=PHP&decimals=2&sale_amount=12345&sale_currency=PHP&sale_decimals=2&fee=0&mobile=987654321&operator=64000&language=en&card-id=8&card-number=444444%2A%2A%2A%2A%2A%2A4444&pspid=4321&psp-name=FIRST+DATA&hmac=23a91b25d76903b4228631854db66af3c773413834e27943646551260acd21929&email=test%40test.com&expiry=2022-05&session-id=5432&session-type-id=1&approval-code=1234&payment-method=CD&payment-type=1&payment-provider-id=62&cfx_status_code=115&pre_auth_ext_status_code=105&merchant=6160800539&issuer-approval-code=1234&session_token=testToken&hold_fee_amount=333&hold_fee_currency_code=608&hold_period=480&fraud_status_code=3117&fraud_status_desc=Post+Auth+Screen+Skip+-+Business+Rules&date-time=2021-11-18T23:59:30+00:00&local-date-time=2021-11-19T07:59:30+08:00&billing_first_name=TEST+USER+NAME&billing_last_name=TEST&billing_street_address=TEST+ADDRESS&billing_city=TEST&billing_country=640&billing_state=Metro+Manila&billing_postal_code=1421&billing_email=TEST%40TEST.com&billing_mobile=987654321&billing_idc=63&first_departure_time=2021-11-21 22:00:00&first_departure_time_zone=+08:00&pos=640&ip_address=111.111.111.111,2021-11-19 00:03:14.567,2021-11-19 00:03:14.345

The callback response parameters are listed and defined in the table below.

Parameter

Type

Description

mpoint-id

Integer

Velocity’s unique ID for the payment transaction.

payment-method

String

The type of method used for payment. For example, card, APM, or wallet.

payment-type

String

The type of payment. For example, card, APM, or wallet.

payment-provider-id

integer

A unique identification of the payment provider.

short-code

integer

An SMS short code if opted for SMS notification.

orderid

integer

The order ID the merchant provides when a transaction is initiated.

status

Integer

An integer code indicating the status of the transaction; the values can be either 0 or 1. Refer to the Transaction Status Codes for details.

amount

Integer

Total amount that the customer was charged for the payment transaction in a country’s smallest currency.
Note: If you have subscribed to FX, this field contains the converted amount.

currency

String

The currency in which the customer was charged.
Note: If you are availing FX, this field contains the converted currency.

mobile

String

MSISDN of the customer without an International Dialling Code.

operator

integer

The ID of a customer’s Mobile Network Operator.
A typical value is “country id” multiplied by 100.

desc

String

The description of the transaction status and it depends on the status ID. For example, payment captured or payment rejected.

fee

String

The fee that you charge from a customer.

String

The email address of a customer. If your customer provides this parameter, the Email input field on the Send E-Mail Receipt page is automatically prepopulated with this value.

card-id

String

The card ID to identify the card type. For example, Mastercard or Visa.

HMAC

String

The Message Authentication Code is calculated by creating a SHA512 hash comprising the following input fields in the listed order:

clientid

account

orderid

callback-url

amount

auth-url

customer-ref

auth-token

mobile

[salt]

Using the MAC calculation secures the information sent by the merchant to Velocity by applying the SHA-512 encryption algorithm on key parts of the information sent to protect against tampering. The [salt] is the merchant's shared secret used to ensure that the provided MAC is unique.

date-time

String

The date and time when the transaction takes place

local-date-time

String

The local time and date when the transaction takes place

approval-code

String

The unique ID that a PSP provides for a transaction.

session-id

String

The session ID that Velocity sends as a callback request.

wallet-id

String

The ID of the wallet used.

payment-type

String

The type of payment. For example, card, wallet, or APM.

pspid

String

ID of the transaction at PSP or ACQ. This varies in every transaction.

psp-name

String

The name of the PSP or ACQ used for completing the transaction. For example, 2C2P, 2C2P-ALC, GlobalPayment, Worldpay, or ChasePayment.

office-id

integer

The office ID received from approver.

ep-number

integer

The number received from PSP.

invoice-no

String

The invoice number of a transaction.

issuer-approval-code

Alpha numeric string

The code issued by an approver.

txn-status

Integer

The status of a transaction.

card-holder-name

String

The name of a card holder.

orderid

Integer

The order identification number of a transaction.

errorcode

Integer

An integer code indicating the error status of the transaction.

customer-country-id

Integer

The country ID of a mobile.

device-id

String

The device ID of the customer.

card-number

String

The masked card number if present for a transaction.

expiry

String

The card expiry date (YYYY-MM) if present for the transaction.

language

String

Default language encoding set during client onboarding.

description

String

The transaction description as provided during payment initiation.

issuing-bank

String

The issuing bank name for payment transactions done through online banking payment option.

decimals

Integer

The currency precision; for example, 2 for USD for the currency parameter. If you subscribe to FX, this field contains the converted currency in decimals.

sale_currency

Integer

This is the checkout or sale currency.
If you do not subscribe to FX, the sale currency has the same value as that of the currency parameter.

sale_amount

Integer

This is the checkout or sale amount. If you do not subscribe to FX services, the same amount will have the same value as that of the amount parameter.

exchange_rate

Integer

The conversion rate given by FX. If you do not subscribe to FX, the value of this field is 1.

fraud_status_code

Integer

The final fraud status code. For example, 3011 or 3111.

fraud_status_desc

String

Final fraud status description. For example, Accepted or Review

pre_auth_ext_status_code

Integer

The pre-auth fraud check system response code.

pre_auth_ext_id

Integer

The pre-auth fraud check system transaction ID.

post_auth_ext_id

Integer

Post-auth fraud check system transaction ID.

post_auth_ext_status_code

String

The post-auth fraud check system response code.

billing_first_name

String

The cardholder's billing address first name.

billing_last_name

String

The cardholder's billing address last name.

billing_street_address

String

The cardholder's billing address street address.

billing_city

String

The cardholder's billing address city name.

billing_country

Integer

The cardholder's billing address country ID.

billing_state

String

The cardholder billing address state/region value.

billing_postal_code

integer

The cardholder's billing address zip code.

billing_email

String

The card holder's email address.

integer

Integer

The card holder's mobile number.

billing_idc

Integer

The card holder's mobile dialling country code.

service_type_id

Integer

A value to indicate the type of exchange services used for a transaction. The ID indicates if FX such as DCC, MCP, and PCC are opted. The ID is a two-digit number XY in which:

X - Represents the type of exchange service used in a transaction.

Y - Represents the exchange usedꟷ it can be opt-in or opt-out.

The following table shows the possible values of exchange service ID:

ID (XY)	Service (X)	Opted
11	DCC	Opted
12	DCC	Not opted
21	MCP	Opted
22	MCP	Not opted
31	External MCP	Opted
32	External MCP	Not opted
41	PCC	Opted
42	PCC	Not opted

String

If the PSP sends additional data related to transaction, mPoint sends it in callback. For example, ep-number and office-id are additional information sent by 2c2p-ALC.

session-type-id

Integer

The session type ID in which:

1= normal payment
2= split payment

pos

Integer

Point of sale of transaction. For example, countryid - ISO numeric.

ip_address

String

The IP address of the transaction initiation.

18.Frequently Asked Questions

Q: How can I save the profiles of customers?

A: Use the /mpoint/save-account API to create a new customer profile during sign-up or log in. The profile can be linked to any CRM system for authentication.

Q: How can I save the credit cards of customers?

A: Use the /mpoint/save-card API to store customer card details securely.

Q: How can I get the Client ID and Account ID?

A: CPD shares the client ID and account ID after the client configuration is completed.

Q: What is the use of pay service?

A: The Pay API call is required to identify the payment methods and to capture the appropriate payment details from the user. For instance, in the case of APMs and Wallets a customer may be redirected to complete payment in-app or by opening a web view.

Q: Can I support delayed captures, that is, authorize first and capture later?

A: If the auto-capture option is set to false in the client configuration, /mPoint/capture-payment, the API call enables capturing an authorized transaction. The capture API call can be made immediately or after a delay. A merchant can choose to make the capture calls offline after a delay or in a batch mode during off-peak hours.

Q: Our flow is to ask a customer to add a card before the journey. We would therefore need a card verification service.

A: This feature is dependent on acquirer services. You can get in touch with our support team for details.

Q: What is the use of callback URL as arguments in the API, when the service is synchronous?

A: The authorization response is a synchronous service response, while callback is an asynchronously triggered B2B call. CPD recommends using the callback as a trigger for releasing the ticket. The synchronous auth response has a risk of being timed out at the merchant's end. The callback helps to process any asynchronous processing, if required. The callback can also send a few additional parameters that can be used by retail system such as masked card number or status code. The callback is received for key transaction states such as authorize, capture, refund, and cancel operations.

19.Description of Parameters

The parameters are listed and defined in the table below.

Parameter	Type	Description
account	Integer	The unique ID associated with a payment transaction. It is optional. If you omit this parameter, the payment transaction is associated with the default sub-account.
client-id	Integer	The unique ID configured for a merchant on the Velocity POP.
auth-token	String	A unique token sent to the specified auth-url to authenticate customers when they pay with a stored card and use single sign-on.
operator-id	Integer	The ID of a customer’s mobile network operator. CPD recommends including this parameter in a request to ensure that Velocity interacts with the operator accurately.
country-id	Integer	The CPD-specific country code, which is made available to merchants on request.
email	String	The email address of a customer.
customer-ref	String	The unique reference ID given by a merchant for a customer. Velocity uses this token to identify a user. The customer reference is included in the request to a specified auth-URL to identify customers when they: Pay with a stored card through the mVault Use single sign-on. Note: Customer-ref can be mandatory or optional, based on the requirement of a merchant or a PSP.
type-id	Integer	A type of card.
country-id	Integer	The CPD-specific country code, which is made available to merchants on request.
card-holder-name	String	The name of a card holder.
card-number	String	The card number used for transaction.
expiry-month	String	The date on which a card expires.
expiry-year	String	The year in which a card expires.
language	String	The language that Velocity uses as default when translating the payment pages. Note: Velocity language codes are based upon the ISO- 639-1 standard. Refer to https://en.wikipedia.org/wiki/List_of_ISO_639-1_codes for details.
version	String	The version of the API or application that send the request.
card-holder-name	String	The name of a card holder.
card-number	String	The card number used for transaction.
expiry-month	String	The date on which a card expires.

20.Status Codes

20.1 General Codes

Code	Category	Type	Description
1001	Payment	Payment Initialized with Velocity	The payment transaction is created in the Velocity database.
1009	Payment	Payment Initialized with PSP	The payment processor responsible for authorizing the payment has been initialized.
1991	Callback	Merchant Callback Constructed	The callback to the merchant application sent to callback-url has been constructed.
1992	Callback	Callback Connected	The connection with the merchant callback URL is established.
1993	Callback	Callback Connection Failed	The connection with the merchant callback URL failed.
1990	Callback	Callback Accepted	The merchant system returned an HTTP 200 OK and received the callback.
1995	Callback	Callback Rejected	The merchant system returned an HTTP $XX/5XX Error and rejected the callback.
2000	Payment	Authorized	The payment has been authorized successfully by the PSP.
2002	Payment	Cancelled	The authorized payment has been cancelled successfully by the PSP.
2003	Payment	Refunded	The captured payment refunded successfully (full / partial) by the PSP. The manual operation / delayed refund - pending states, initiated.
2008	Payment	Payment via Stored	Initialized payment with a stored card.
2009	Payment	Authorized and Card Stored	The payment has been authorized successfully by the PSP and the card stored on a successful authorization.
2001	Payment	Captured	The payment has been captured successfully by the PSP initiated for refund.
2010	Payment	Rejected	The payment was rejected by the PSP or Acquirer need more granular states - message tbl front end can continue handling the generic state.
20109	Payment	Rejected sub state on timeout	Issuer down time; SDK returns this to the Velocity core.
20108	Payment	Rejected sub state on timeout	PSP down time; SDK returns this to the Velocity core.
2011	refund Payment	Declined	The payment was declined by the PSP / Acquirer while performing capture, refund, or cancel. No Vision impact; however, all declines have common state 2011.
4020	Session	Session Failed	The session failed or declined. One or more transactions in the session failed.
4021	Session	Session Failed	The session failed (maximum attempt exceeds). One or more transaction attempts failed.
4030	Session	Session Complete	The session completed successfully. The transactions in the session are complete and successful.
4031	Session	Session Partial	The session was partially completed. One or more transactions in the session were incomplete.

Additional codes.

Code	Description
0	Payment not made.
200	Request validated and accepted by back end.
400	Request rejected by back end because of validation error.
401	Authentication required.
403	Access denied.
415	Message transmitted in an unknown format or by using an unsupported content type.
500	Velocity server error.
502	PSP returned an unknown error.
504	A timeout occurred while communicating with the PSP.
1003	Card expired.
1005	Invalid card number.
1011	Invalid card name.
1012	Invalid card address.
1013	Invalid card date of birth.
1014	Card is inactive.
2007	Payment processed.
2019	Payment duplicated.
2084	Card not found.
4030	Payment success.
40031	Partial payment success.

20.2 Initialize Payment

The following table provides information about the codes that you can receive after you initialize a payment.

Code	Description
1	Undefined client ID
1	Client ID / Account doesn't match.
2	Invalid client ID
3	Unknown client ID
4	Client disabled
11	Undefined account
12	Invalid account
13	Unknown account
14	Account disabled
53	Amount is more than pending amount.
400	Wrong operation: initialize.
401	Authentication required.
401	Authorization required.
401	Username / Password doesn't match.
415	Invalid XML Document.
1002	Internal database error - Unable to create a new Transaction. Contact [email protected]
1003	Internal database error - Unable to insert new message for Transaction. Contact [email protected]
1004	Internal database error - Unable to update Transaction. Contact [email protected]
4021	Payment failed: You have exceeded the maximum number of attempts.
4039	Payment session is already completed.

20.3 Authorize Payment

The following table provides information about the codes that you can receive after you authorize a payment.

Code	Description
1	Undefined client ID
1	Client ID / Account doesn't match.
2	Invalid client ID
3	Unknown client ID
4	Client disabled
11	Undefined account
12	Invalid account
13	Unknown account
14	Account disabled
24	The selected payment card is not available.
26	Undefined password.
27	Password is too short; min length is 6 characters.
28	Password is too long; max length is 50 characters.
29	Password contains invalid characters or
31	Authentication failed.
32	Authentication failed – Next invalid attempt will delete the account.
33	Authentication failed – Account deleted.
34	Authentication rejected by the single sign-on server.
35	User account not found.
36	A timeout occurred while communicating with the single sign-on server.
37	Mobile number not verified.
38	Unable to perform single sign-on due to invalid Security Token or Authentication URL.
39	User account disabled.
41	Undefined card ID.
42	ID for the stored card is too small, min value is 1.
43	Stored card not found.
43	Insufficient balance on voucher.
44	Stored card disabled.
45	Voucher and Redeem device-ids not equal.
48	Voucher payment temporarily locked.
51	Insufficient balance on e-money account.
52	Insufficient balance on loyalty account.
52	Amount is more than pending amount.
53	Authorization type not supported for the transaction.
59	An unknown error occurred while retrieving payment data from 3rd party wallet. Card has been blocked.
90	The connection timed out while authorizing the payment with the PSP.
92	Authorization rejected by PSP / Acquirer.
92	Payment rejected by invoice issuer
99	Unknown PSP / Acquirer.
99	The given request combination is not configured for the client.
99	Invoice payment not configured for client.
100	Payment authorized using a stored card.
100	Payment authorized using Invoice
100	Payment Authorized using stored card.
101	Payment authorized using e-money account.
102	Payment authorized using loyalty account.
103	Authorization already in progress.
400	Wrong operation: authorization.
401	Authentication required.
401	Authorization required.
401	Username / Password doesn't match.
404	Transaction with ID:.
415	Invalid XML Document.
1002	Internal database error - Unable to create a new Transaction. Contact [email protected]
1003	Internal database error - Unable to insert new message for Transaction. Contact [email protected]
1004	Internal database error - Unable to update Transaction. Contact [email protected]
2000	Payment authorized.
2009	Payment authorized and card stored.
2010	Authorization Declined or Rejected

20.4 Capture Payment

Code	Description
1	Client ID / Account doesn't match.
400	Invalid request.
400	Wrong operation: capture.
401	Authorization required.
401	Username / Password doesn't match.
415	Invalid XML Document.
500	Internal Error.
997	Capture not supported.
998	Network error.
999	Declined.
1000	Transaction captured successfully.
1000	Success.

20.5 Refund Payment

Code	Description
1	Client ID / Account doesn't match.
51	The amount is undefined.
52	The amount is too small.
53	The amount greater than the authorized amount.
177	Order already refunded.
400	Wrong operation: refund.
401	Authorization required.
401	Username / Password doesn't match.
415	Invalid XML Document.
998	Network error.
999	Declined.
1000	Transaction refunded successfully.
1001	Transaction cancelled successfully.
9400	Invalid request.
9502	Bad gateway.
9500	Internal sever error.

21. Appendix

21.1 Processor Type

ID	Processor Type
1	PSP
3	Wallet
4	APM
2	Acquirer
5	Virtual
6	Merchant Plug-in
7	Gateway
8	Tokenize
9	Fraud Gateway
10	Post Auth Fraud Gateway
11	Voucher and Credit

21.2 Card

ID	Card
10	SMS
12	Switch
13	Solo
14	Delta
1	American Express
2	Dankort
3	Diners Club
4	EuroCard
5	JCB
6	Maestro
7	Master Card
8	VISA
9	VISA Electron
18	Cartebleue
19	Postepay VISA
20	Postepay Mastercard
22	Discover
24	Invoice
16	VISA Checkout
17	MobilePay
27	Android Pay
25	AMEX Express Checkout
23	Master Pass
15	Apple Pay
28	Paypal
31	SADAD
32	AliPay
34	POLi
35	mVault
11	My Account
39	WeChat Pay
40	AliPay Chinese
41	Google Pay
70	BENEFIT
69	KNet
21	UATP
72	SADAD v2
87	OMANNET
71	MADA
94	GrabPay
36	Klarna
42	PPRO
92	SWISH
93	GCash
95	PayMaya
73	FPX
26	TravelFund
47	Dragonpay
88	DRAGONPAYOFFLINE
96	Payment Center Offline
63	SafetyPay
97	PSE
99	Efecty
100	Banco de Bogata
98	Via Baloto
82	ELO
45	Bancontact
50	EPS
52	giropay
53	Ideal
61	Przelewy24
66	Sofort
86	Mobile Money
67	UnionPay
101	UnionPay Card
102	Agency Credit

21.3 Card State

ID	Card State
1	Enabled
2	Disabled By Merchant
3	Disabled By PSP
4	Prerequisite not Met
5	Temporarily Unavailable
6	Disable Show

21.4 Country

ID	Country
103	UK
338	Libyan Arab Jamahiriya
410	Central African Republic
502	Cook Islands
100	Denmark
616	Japan
415	Netherlands Antilles
422	South Georgia and IS
423	British International Ocean Territory
135	Latvia
622	Macao
425	St. Lucia
145	St. Pierre and Miquelon
401	Aruba
436	St. Maarten
440	St. Vincent and The Grenadines
507	Cocos (Keeling) Islands
647	United Arab Emirates
600	Abu Dhabi
602	Dubai
629	Kerguelen Archipelago
307	Burundi
122	Bulgaria
304	Bolivia
650	Kiribati
511	Kiribati
146	Palestinian Territory
516	Tuvalu
409	French Departments and Territories in the Indian Ocean
120	Belarus
109	Switzerland
404	Chile
609	China
315	Democratic Republic of the Congo
405	Colombia
309	Cape Verde
406	Costa Rica
208	Cuba
124	Cyprus
125	Czech Republic
115	Germany
316	Djibouti
417	Scott Base
317	Egypt
337	Eritrea
113	Spain
126	Estonia
319	Ethiopia
104	Finland
504	Fiji
416	Falkland Islands
108	France
127	Faroe Islands
128	Georgia
210	Guadeloupe
105	Greece
130	Greenland
421	French Guiana
133	Ireland
107	Italy
136	Liechtenstein
137	Lithuania
138	Luxembourg
141	Monaco
139	Malta
142	Montenegro
426	Martinique
339	Mayotte
110	Netherlands
343	Reunion
151	San Marino
335	Tristan Da Cunha
152	Slovakia
153	Slovenia
156	Vatican City State
430	Pitcairn Island
312	Comoros
322	Ghana
129	Gibraltar
323	Guinea
321	Gambia
410	Guatemala
411	Guyana
614	Hong Kong
412	Honduras
123	Croatia
131	Hungary
505	Indonesia
603	India
615	Iran
628	Iraq
132	Iceland
106	Israel
617	Jordan
325	Kenya
617	Cambodia
604	Kuwait
620	Lao P.D.R.
621	Lebanon
327	Liberia
634	Sri Lanka
326	Lesotho
333	Morocco
636	Macau
140	Moldova
328	Madagascar
623	Maldives
201	Mexico
143	Republic of Macedonia
624	Mongolia
334	Mozambique
331	Mauritania
332	Mauritius
329	Malawi
638	Malaysia
340	Namibia
427	Nicaragua
629	Nepal
513	New Zealand
610	pakistan
606	Qatar
607	Russia
344	Rwanda
150	Republic of Serbia
216	Johnston Island
217	Midway Island
218	United States Minor Outlying Islands
442	Virgin Islands, United States
510	Norfolk Island
626	Diego Garcia
308	Cameroon
407	Ecuador
506	Micronesia
211	Haiti
635	Marshall Islands
342	Nigeria
515	Niue
102	Norway
605	Oman
428	Panama
429	Peru
640	Philippines
641	Palau
112	Poland
147	Portugal
432	Paraguay
149	Romania
608	Saudi-Arabia
346	Sudan
642	Singapore
348	Sierra Leone
347	St. Helena
408	El Salvador
434	Somalia
349	Sao Tome and Principe
435	Suriname
101	Sweden
350	Swaziland
345	Seychelles
643	Syrian Arab Republic
311	Chad
644	Thailand
645	Turkmenistan
515	Tonga
352	Tunisia
154	Turkey
353	Tanzania
354	Uganda
155	Ukraine
439	Uruguay
200	USA
648	Uzbekistan
441	Venezuela
517	Vanuatu
519	Samoa
358	Zimbabwe
144	Monserrat
357	Zaire
414	Carriacou
424	St. Christopher (St. Kitts) Nevis
303	Benin
306	Burkina Faso
314	Côte d'Ivoire
313	Congo
320	Gabon
324	Guinea-Bissau
318	Equatorial Guinea
330	Mali
509	New Caledonia
341	Niger
504	French Polynesia
433	Senegal
351	Togo
518	Wallis and Futuna Islands
650	Yemen
355	South Africa
356	Zambia
161	Åland Islands
445	French Southern Territories
456	Heard and McDonald Islands
652	Tajikistan
520	Timor-Leste
521	Tokelau
219	Saint Barthelemy
443	Bonaire, Saint Eustatius and Saba
444	Curacao
159	Guernsey
158	Svalbard and Jan Mayen Islands
160	Jersey
220	Saint Martin
111	Belgium
114	Austria
116	Afghanistan
117	Albania
118	Andorra
119	Armenia
121	Bosnia and Herzegovina
300	Algeria
301	Angola
302	Bangladesh
305	Botswana
400	Argentina
402	Belize
403	Brazil
500	Australia
501	Brunei Darussalam
514	Solomon Islands
601	Bahrain
611	Azerbaijan
612	Bhutan
134	Isle of Man
202	Canada
203	Anguilla
204	Antigua and Barbuda
205	Barbados
206	British Virgin Islands
207	Cayman Islands
209	Dominican Republic
212	Jamaica
213	American Samoa
214	Bermuda
215	Bahamas
336	Western Sahara
413	Antarctica
418	Dominica
420	Grenada
431	Puerto Rico
437	Turks and Caicos Islands
438	Trinidad and Tobago
508	Christmas Island
618	Kazakhstan
359	South Sudan
619	Kyrgyzstan
627	Guam
637	Northern Mariana Islands
646	Taiwan
651	Papua New Guinea
653	Myanmar
416	Bouvet Island
649	Vietnam
148	Kosovo
633	Kazakhstan
632	South Korea
631	North Korea
625	Burma

21.5 Currency

ID	Currency
12	Algerian Dinar
44	Bahamian Dollar
64	Ngultrum
68	Boliviano
72	Pula
84	Belize Dollar
116	Riel
124	Canadian Dollar
132	Cabo Verde Escudo
136	Cayman Islands Dollar
144	Sri Lanka Rupee
152	Chilean Peso
15	Yuan Renminbi
170	Colombian Peso
174	Comorian Franc
188	Costa Rican Colon
191	Kuna
192	Cuban Peso
203	Czech Koruna
214	Dominican Peso
222	El Salvador Colon
230	Ethiopian Birr
232	Nakfa
238	Falkland Islands Pound
242	Fiji Dollar
262	Djibouti Franc
270	Dalasi
292	Gibraltar Pound
320	Quetzal
324	Guinean Franc
328	Guyana Dollar
332	Gourde
340	Lempira
344	Hong Kong Dollar
348	Forint
352	Iceland Krona
356	Indian Rupee
360	Rupiah
364	Iranian Rial
368	Iraqi Dinar
376	New Israeli Sheqel
388	Jamaican Dollar
398	Tenge
400	Jordanian Dinar
404	Kenyan Shilling
408	North Korean Won
414	Kuwaiti Dinar
417	Som
418	Lao Kip
422	Lebanese Pound
426	Loti
430	Liberian Dollar
434	Libyan Dinar
454	Malawi Kwacha
458	Malaysian Ringgit
462	Rufiyaa
478	Ouguiya
480	Mauritius Rupee
484	Mexican Peso
496	Tugrik
498	Moldovan Leu
504	Moroccan Dirham
512	Rial Omani
516	Namibia Dollar
524	Nepalese Rupee
558	Cordoba Oro
566	Naira
578	Norwegian Krone
586	Pakistan Rupee
590	Balboa
600	Guarani
604	Sol
608	Philippine Peso
634	Qatari Rial
643	Russian Ruble
646	Rwanda Franc
654	Saint Helena Pound
678	Dobra
682	Saudi Riyal
694	Leone
702	Singapore Dollar
704	Dong
706	Somali Shilling
748	Lilangeni
752	Swedish Krona
756	Swiss Franc
780	Trinidad and Tobago Dollar
807	Denar
818	Egyptian Pound
901	New Taiwan Dollar
933	Belarusian Ruble
936	Ghana Cedi
938	Sudanese Pound
941	Serbian Dinar
943	Mozambique Metical
946	Romanian Leu
8	Lek
32	Argentine Peso
36	Australian Dollar
48	Bahraini Dinar
50	Taka
51	Armenian Dram
52	Barbados Dollar
60	Bermudian Dollar
90	Solomon Islands Dollar
96	Brunei Dollar
104	Kyat
108	Burundi Franc
392	Yen
446	Pataca
532	Netherlands Antillean Guilder
533	Aruban Florin
554	New Zealand Dollar
598	Kina
728	South Sudanese Pound
784	UAE Dirham
931	Peso Convertible
932	Zimbabwe Dollar
944	Azerbaijan Manat
950	CFA Franc BEAC
960	SDR (Special Drawing Right)
968	Surinam Dollar
969	Malagasy Ariary
971	Afghani
972	Somoni
973	Kwanza
975	Bulgarian Lev
940	Uruguay Peso en Unidades Indexadas (URUIURUI)
976	Congolese Franc
977	Convertible Mark
981	Lari
947	WIR Euro
985	Zloty
990	Unidad de Fomento
994	Sucre
997	US Dollar (Next day)
965	ADB Unit of Account
970	Unidad de Valor Real
979	Mexican Unidad de Inversion (UDI)
978	Euro
208	Danish Krone
984	Mvdol
1	No Specific Currency
826	Pound Sterling
948	WIR Franc
890	US Dollar
410	Won
548	Vatu
690	Seychelles Rupee
710	Rand
760	Syrian Pound
764	Baht
776	Pa’anga
788	Tunisian Dinar
800	Uganda Shilling
834	Tanzanian Shilling
858	Peso Uruguayo
860	Uzbekistan Sum
882	Tala
886	Yemeni Rial
934	Turkmenistan New Manat
937	Bolívar
949	Turkish Lira
951	East Caribbean Dollar
952	CFA Franc BCEAO
953	CFP Franc
967	Zambian Kwacha
980	Hryvnia
986	Brazilian Real

21.6 Payment Type

ID	Payment Type
1	Card
3	Wallet
4	APM
5	Card Token
6	Virtual
7	Online Banking
8	Offline Payment
2	Voucher and Credit

21.7 Product Type

ID	Product Type
100	Ticket
200	Ancillary
210	Insurance

21.8 PSP

ID	PSP
1	CellPoint Mobile
2	DIBS - Custom Pages
3	IHI
4	WorldPay
5	PayEx
6	Authorize.Net
7	WannaFind
8	NetAxept
9	CPG
11	MobilePay
13	VISA Checkout
14	Apple Pay
15	Master Pass
16	AMEX Express Checkout
17	Data Cash
18	Wire Card
20	Android Pay
21	GlobalCollect
22	Velocity
23	PayFort
25	CCAvenue
26	2C2P
27	MayBank
28	PublicBank
30	AliPay
32	POLi
36	mVault
43	AliPay - Chinese
49	UATP
50	UATP Card Account
44	Google Pay
52	Chase Payment
48	CHUBB
45	Amex
47	MODIRUM MPI
54	Cielo
56	Global Payments
57	MADA MPGS
65	CEBU-RMFSS
60	EZY Fraud Gateway
59	VeriTrans4G
51	eGHL
38	Paytabs
46	PPRO
62	FIRST DATA
63	CyberSource
41	Citcon
42	NETS MPI
37	Klarna
66	SWISH
61	DragonPay
19	DSB
76	Agency Credit
58	CELLULANT
78	Reach
12	Adyen
70	SafetyPay
73	paymaya acq
74	nmi
24	PayPal
40	2c2p-alc
67	GrabPay
68	PayMaya
69	Payment Center
71	CEBU Travel Fund
72	MPGS
53	PayU
10	Stripe
64	CyberSource Fraud Gateway
75	AUB

21.9 Session Type

ID	Session Type
1	Full Payment Session
2	Split Payment Session

21.10 TXN Type

ID	TXN Type
10	Call Centre Purchase
11	Call Centre Subscription
20	SMS Purchase
21	SMS Subscription
30	Web Purchase
31	Web Subscription
100	Top-Up Purchase
101	Top-Up Subscription
1000	E-Money Top-Up
1001	E-Money Purchase
1002	E-Money Transfer
1003	E-Money Withdrawal
1009	Card Purchase
40	Mobile App. Purchase
41	Mobile App. Subscription
102	Points Top-Up Purchase
1004	Points Top-Up
1005	Points Purchase
1007	Points Reward
10091	New Card Purchase
1	Shopping Online
2	Shopping Offline
3	Self Service Online
4	Self Service Offline
5	Self Service Online with additional rules on FOP
6	Payment Link Transaction
7	Telephone Order
8	Mail Order
